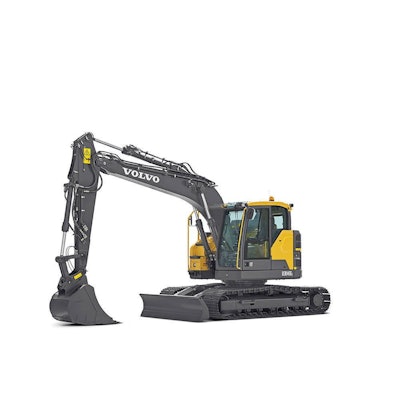

VOLVO ECR145E
The optimized compact design of the ECR145E crawler excavator offers a short swing radius for operating in confined spaces without compromising on performance. The machine’s Stage V engine and enhanced hydraulics system results in smoother operation and increased productivity.
TECHNICAL SPECIFICATIONS FOR ECR145E
Here are the key specifications for this product model.
METRIC IMPERIAL
Operating weight 14,435 - 16,677 kg Gross power 90 kW ...at engine speed 2,000 rpm Bucket capacity 0.25 - 0.82 m³ Lifting capacity, along undercarriage 3,700 kg ...at reach / height 6 / 1.5 m Max. digging reach 8,360 mm Max. digging depth 5,530 mm Breakout force, SAE J1179 (Normal) 80.5 kN Breakout force, SAE J1179 (Boost) 85.4 kN Tear out force, SAE J1179 (Normal) 62.1 kN Overall width feet inches 2,690 mm Tear out force, SAE J1179 (Boost) 65.8 kN Tail swing radius 1,494 mm
SHORT SWING RADIUS
The optimized compact design of the ECR145E/ECR235E offers a short swing radius for operating in confined spaces without compromising on performance. The machine’s Stage V engine and enhanced hydraulics system results in smoother operation and increased productivity.
TRACTIVE FORCE
For more power and better productivity, the machine’s system design – specific to the ECR145E/ECR235E – and durable under carriage ensure impressive tractive force when climbing gradients and traveling over rough or soft terrain.
STAGE V ENGINE
Featuring proven advanced technology, and built on decades of experience, Volvo’s robust Stage V engine boasts more power - while reducing both fuel consumption and emissions to deliver superior quality, reliability and durability.
WORKING MODE
Volvo’s integrated working mode system, which now includes the G4 mode, optimizes fuel efficiency, reduces running costs, increases productivity and performance. Choose the best work mode for the task at hand – select from I (idle), F (fine), G (general), H (heavy) and P* (power max).
FASTER CYCLE TIME
Do more in less time as the enhanced hydraulics system increases pump power for faster and smoother operation, resulting in quicker cycle times and higher productivity.
COMFORT CAB
Operate in a comfortable, low noise environment to increase efficiency and reduce operator fatigue. The larger ROPS certified cab has a wider entrance for easier access, more legroom and a more spacious interior, while the responsive climate control system provides a comfortable working environment.
CLIMATE CONTROL SYSTEM
For easier controllability and operator comfort the machine features an improved climate control system displayed on the 8” LCD monitor. The industry-leading air circulation and defrosting system speeds up the heating and cooling of the cab for a more comfortable environment.
KEYPAD
The keypad allows the operator to navigate through different settings on the 8” LCD monitor and activate machine functions in a safe and comfortable way. The functionality of the camera, air conditioning and lights can be customized through the keypad and configurations can be saved for added convenience. Bluetooth and a hands-free function have also been added so the operator can connect to wireless functions.
BETTER VISIBILITY
For a clear view of your job site, the cab’s slim pillars and large expanses of glass result in excellent all-round visibility. Well positioned and a longer vertical windshield wiper provides the best possible coverage of the front window for comfortable and accurate operating.
SHORTCUT BUTTON
The windshield wipers, camera, audio mute and power max function can be assigned to a shortcut button located on the joystick, so the operator can control the selected function by simply pressing a button.
ENHANCED HYDRAULICS
Secure more profit and reduce your Total Cost of Ownership by lowering fuel consumption and increasing uptime with the ECR145E/ECR235E short swing radius excavator. The winning combination of an enhanced hydraulics system with fully electronic control system, improved ECO mode, convenient service access and easy maintenance, all contribute to lower costs and higher productivity.
ECO MODE
For better fuel efficiency without sacrificing performance and power in most operating conditions, Volvo’s unique and intelligent ECO mode optimizes the hydraulic system to reduce flow and pressure losses in order to reduce fuel consumption. ECO mode is automatically selected but can be switched off via the keypad.
AUTO IDLE AND ENGINE SHUTDOWN
Engine speed is reduced to idle when the controls are inactive for a pre-set amount of time between 3-20 seconds – reducing fuel consumption and noise. If the machine is left idle for longer, the optional auto engine shutdown feature will automatically turn off the machine.
SAFER ACCESS
The machine features well-positioned punched anti-slip plates, handrails and foldable guardrails* for superior grip and added safety. The design facilitates easy inspection and maintenance to promote safety.
EASY SERVICE ACCESS
To increase the longevity of your machine, it’s important to carry out regular service checks. Volvo has grouped filters and centralized greasing points, which are accessible from the ground for easy access. Maximize machine uptime and avoid any unwanted costs.
BUCKETS
Maximize your productivity and profitability with Volvo’s ECR145E/ECR235E excavators and a range of durable attachments. Increase your versatility, access more applications and perform a variety of tasks on one job – all while experiencing faster cycle times and excellent control.
QUICK COUPLER RANGE
Volvo offers a full range of quick couplers, including its dedicated S-type and symmetrical couplers that reduce a loss of break-out force and perfectly match Volvo attachments. In addition, the Volvo universal quick coupler picks up a variety of attachments from various manufacturers – all without leaving the comfort of your cab.
HYDRAULIC BREAKERS
The HB-Series of hydraulic breakers are optimized to the specific weights of Volvo machines and tailored to Volvo quick couplers for swift, safe and simple attachment changes. They are available with a full assortment of tools.
TILT ROTATOR
Volvo’s tilt rotator can be ordered factory installed with multifunctional joysticks and a color display that’s fully integrated into the machine’s system. The new series of Volvo Aggressive Cut excavator buckets are perfectly matched to the factory-installed tilt rotator.
ATTACHMENT MANAGEMENT SYSTEM
The password protected attachment management system allows storage for up to 20 different attachments. The system allows the operator to pre-set hydraulic flow and pressure inside the cab through the monitor, which ensures the use of various attachments for increased versatility.
CUSTOMER SUPPORT AGREEMENTS
Being a Volvo customer means having a complete set of services at your fingertips. Volvo can offer you a long-term partnership, protect your revenue and provide a full range of customer solutions using high quality parts, delivered by passionate people. Volvo is committed to increasing the positive return on your investment and maximising uptime.
COMPLETE SOLUTIONS
Volvo has the right solution for you. So why not let us provide all your needs throughout the whole life cycle of your machine? By listening to your requirements, we can reduce your total cost of ownership and increase your revenue.
SERVICE NETWORK
In order to respond to your needs faster, a Volvo expert is on their way to your job site from one of our Volvo facilities. With our extensive infrastructure of technicians, workshops and dealers, Volvo has a comprehensive network to fully support you using local knowledge and global experience.
