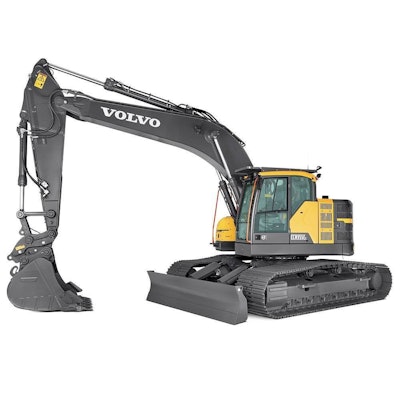

VOLVO ECR355E
Rely on the ECR355E short swing radius, offering solid stability, greater lifting capacity and digging force, proven durability and greater controllability. Access tight job sites thanks to the long list of standard features, cleverly-designed to ensure efficient operations and long-lasting performance.
TECHNICAL SPECIFICATIONS FOR ECR355E
Here are the key specifications for this product model.
METRIC IMPERIAL
Operating weight 34,100 - 38,000 kg Gross power 180 kW ...at engine speed 1,800 rpm Bucket capacity 0.92 - 2.06 m³ Lifting capacity, along undercarriage 12,680 kg ...at reach / height 6 / 1.5 m Max. digging reach 10,741 mm Max. digging depth 6,818 mm Breakout force, SAE J1179 (Normal) 165 kN Breakout force, SAE J1179 (Boost) 179 kN Tear out force, SAE J1179 (Normal) 133 kN Overall width feet inches 3,340 mm Tear out force, SAE J1179 (Boost) 144 kN Tail swing radius 1,900 mm
SHORT SWING, SOLID STABILITY
Proving that you don’t need to make compromises, the new ECR355E short swing radius excavator from Volvo is designed for working in confined areas – while delivering digging performance, fast cycle times, balance and stability that rival conventional excavators. Get to work without delay in the robust machine, powered by the fuel-efficient Tier 4 Final certificated Volvo engine and do more for less.
THE RIGHT MODE FOR THE JOB
Keep performance high and costs low with the integrated Volvo work mode system. Choose the best work mode for the task at hand – select from I (Idle), F (Fine), G (General), H (Heavy) and P (Power max). The new ECO mode uses the latest electronic pump control technology to further boost fuel efficiency without any loss in performance.
POWER TO PERFORM
Power your operation with the fuel-efficient Stage V certificated Volvo engine, combining high torque and low RPM for superior, long-lasting performance. Based on proven, advanced technology and decades of experience, the robust D8 engine delivers 180kW (241 Hp) of power, while reducing both fuel consumption and emissions.
GET TO WORK – FAST
Cut cycle times to a minimum and increase profitability with the E-Series electro-hydraulic system. Working in combination with the Volvo engine, the advanced system increases pump power for faster and smoother operation, all while providing greater control, superior digging performance and unbeatable productivity.
DO MORE FOR LESS
Increase fuel efficiency by up to 10% with the ECR355E, designed to help you do more for less. ECO Mode, combined with the efficient Stage V certificated Volvo engine and superior hydraulic performance at lower engine RPM – results in improved fuel efficiency without any loss of performance in most operating conditions. Cut cycle times thanks to the boom float function, which saves pump power when lowering the boom.
LIFT MORE, DIG MORE
No task is too tough for the robust and versatile ECR355E. The short swing radius machine is a proven partner to increase productivity on tight job sites. Combining superior digging performance, greater lifting capacity, ease of mobility and a precise finish in grading applications, the ECR355E is a compact machine that packs a powerful punch.
ADAPT TO ANY APPLICATION
From road construction to heavy infrastructure work, the ECR355E’s class-leading short swing radius goes where conventional machines cannot. Add the Volvo dozer blade, quick coupler, auxiliary hydraulics or the optional two-piece boom, and the result is greater versatility and productivity. Adapt to any application with the ECR355E without compromising on reach, lifting or digging performance.
PRODUCTIVITY SERVICES
Improve and maintain site productivity with a host of smart solutions offered by Productivity Services. Operator behavior, site setup and machine configuration are just some of the many factors within Productivity Services that can be refined to boost productivity. Choose from various machine options, Assist solutions and training packages to enhance the performance of your Volvo fleet – so you can do more and earn more.
GO ANYWHERE ABILITY
Go everywhere in the ECR355E, designed to deliver maximum mobility, performance and power for its size. Thanks to its compact design, the machine is ideal for working in confined spaces and can easily be transported from site to site. And with the optional narrow and long undercarriage, mobility is further enhanced between job sites.
MAKING THE GRADE
Experience smooth operation, fast response times and high performance with the ECR355E, featuring increased hydraulic flow for accurate control in grading and combined operations. Benefit from easier movement when traveling and lifting simultaneously, and better grading quality thanks to the synchronized boom and arm movement. Designed to complement each other, the enhancements also contribute to low fuel consumption.
UP TO THE TEST
Always available and ready to work, the ECR355E knocks big jobs down to size. This robust machine delivers ultimate uptime across a variety of applications – no matter how demanding – thanks to its sturdy design, reliable and wear-resistant components, reinforced undercarriage and easy service access.
DURABLE BY DESIGN
Achieve non-stop production with the durable and reliable ECR355E. Built with robust components, including a strong X-frame undercarriage featuring forged steel top rollers, and Volvo’s rugged boom and arms, the machine can be relied on for longevity and sustained uptime.
SIMPLE SERVICEABILITY
Maximize uptime with quick and safe ground-level servicing. Essential maintenance points – including pump pressure taps, filters and the cooling package – are easily accessed via the wide-opening compartment doors, which can be latched at 90°. And, with logicallygrouped greasing manifolds, anti-slip plates and plentiful handrails, you can get back to work swiftly and safely.
TAKE CONTROL
Get comfortable with doing more in the Volvo ECR355E. The new E-Series is designed to maneuver in and out of confined areas, yet remains spacious and comfortable. The low-noise cab increases efficiencies and reduces operator fatigue thanks to a number of features, including the automatic climate control system. Do more with Volvo – because a comfortable operator is a more productive operator.
COMFORTABLY PRODUCTIVE
Comfort is key. The industry-leading ROPS certified Volvo cab’s expansive window area offers unparalleled visibility. The adjustable seat, ample legroom and vibration dampeners deliver superior comfort and productivity. With ergonomic controls and simplified switches integrated into the keypad, the Human Machine Interface (HMI) brings the operator and technology together, forming one cohesive working environment.
EVERY ANGLE IN VIEW
From the Volvo cab, experience all-around visibility around the machine and surrounding job site thanks to narrow pillars and large windows. The ergonomically designed cab also features a large vertical windshield for greater visibility, safety and convenience – the large upper front window can be easily rolled up and out of the way, while the lower portion can be easily removed and stowed inside the cab.
VOLVO SMART VIEW
Enhance performance and safety with Volvo Smart View. The optional feature combines four exterior-mounted cameras to create a bird’s eye view of the machine, displayed via the on-board monitor. With Volvo Smart View, you can observe all surrounding areas, which is particularly valuable in confined spaces where an extra pair of eyes informs you of the machine’s position in relation to the job at all times.
MIX AND MATCH
Complete a variety of tasks with the versatile ECR355E, designed to work in harmony with integrated attachments from Volvo. With Volvo’s quick couplers and attachment management system, you can easily switch between buckets, hydraulic breakers, and even the Steelwrist® tilt rotator. Maximize cycle times and productivity with the Volvo short swing radius excavator – more than just a machine.
TILT ROTATORS
Volvo’s tilt rotator can be ordered factory-installed with dedicated joysticks and a color display that is fully integrated into the machine’s system. The new series of Volvo Aggressive Cut excavator buckets are perfectly matched to the factory-installed tilt rotator.
LOCKED ON
Volvo offers a full range of quick couplers, which includes Volvo’s S-type, universal and Steelwrist® quick coupler. Offering smooth transitions and quick attachment changes, Volvo’s quick couplers make changing attachments quick and easy – all from the comfort and safety of the cab.
