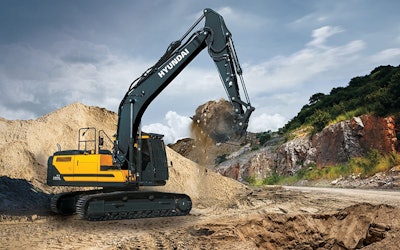

HX220A L
NET POWER 170 hp (127 kW) at 2.200 rpm
OPERATING WEIGHT 22,800 kg (50,265 lb) - 24,728 kg (54,516 lb)
STANDARD BUCKET 0.92 m3 (1.20 yd3 )
OVERVIEW
Powered by a Cummins B6.7 Stage 5/Tier 4 Final diesel engine, the HX220A L complies with the international Stage 5 emissions control standard. New features like visibility and handle improvement, automatic engine shutdown, auto safety lock, enhanced cabin visibility, and eco gauge lifting mode can help improve productivity on hard to handle jobs.
All Hyundai excavators are known for fast cycle speeds, impressive hydraulic power and precision control. At Hyundai, reliable productivity is more than just a promise. The robust upper and lower frame structure can endure external shock and heavy workloads for many thousands of hours.
RELIABILITY & DURABILITY
Hyundai construction equipment is precision designed with trusted and proven components and systems from leading OEM's. The HX220A L is designed to be economically rugged and reliable for longer up time, reduced operating cost and improved productivity. Through a combination of innovative hydraulic system enhancements, Hyundai A-Series HX excavators achieve faster cycle speeds than previous models, which increases productivity.
PERFORMANCE
CUMMINS PERFORMANCE SERIES ENGINE
Combined with the engineering and product design expertise of Hyundai, the Stage 5 Cummins Performance Series engines in the new A-Series machines will deliver substantial performance gains from a smaller, lighter power package. While Stage 5 guidelines do not apply in the USA, the Cummins Performance Series engines featured in A-Series also satisfy Tier 4 Final emissions control requirements. The Stage 5-compliant Cummins Performance Series engines integrate the newest after treatment system - the Single Module - with leading combustion and air-handling technology to be Exhaust Gas Recirculation (EGR)-free for simpler, reduced installation costs.
PERFORMANCE
VARIABLE POWER CONTROL
The A-Series HX excavators introduce variable power control with three power modes to ensure the highest performance in any operating environment. P (power mode) maximizes speed and power for heavy work. S (standard mode) optimizes performance and fuel efficiency for general work. E (economy mode) improves control and efficiency for light work.
CONVENIENCE
INTELLIGENT 8 TOUCHSCREEN MONITOR
The 8-inch interactive touchscreen color display - with centralized switches - allows the operator to check and manage most features of machine operation, switches and diagnostics, all in one convenient location.
CONVENIENCE
CONVENIENT CONTROLS & DELUXE OPERATOR'S SEAT
A-Series HX excavators feature deluxe operator's seats with air suspension, selectable heat and adjustable armrests. Seats are fully adjustable for maximum operator comfort. A convenient clustering of electronic controls and monitoring functions assist with improved operator accuracy and efficiency.
SERVICEABILITY
EASY ACCESS TO DEF SYSTEM
The DEF/AdBlue compartment and access door received a new and improved design change which allows for better accessibility to both the DEF fill port, pump and filter. A more visible Ÿ to FULL sight gauge was also added (replacing the previous indicator) to prevent overfilling of the tank.
SERVICEABILITY
UPPER-STRUCTURE ACCESS
HX series excavators are equipped with large grab rails, guard rails and a proprietary anti-slip surface on the upper structure that make accessing key service areas easier and safer.
SAFETY
AAVM (ALL AROUND VIEW MONITORING)
The Hyundai-exclusive AAVM video camera system provides the operator a 360-degree field of view on the monitor, which greatly contributes to work site safety. Part of this system includes IMOD (Intelligent Moving Object Detection), which alerts the operator to the presence of people or objects within a 5 meter (16 ft) range of operation.
SAFETY
GRAB RAILS & GUARD RAILS
Large upper grab rails coupled with left and right side guard rails facilitate access to the upper while reducing potential falls.
