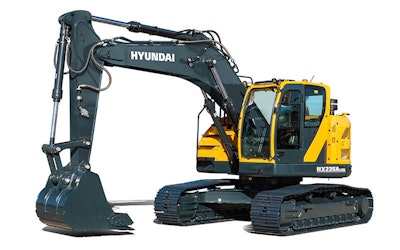

HX235A LCR
NET POWER 170 hp (127 kW) at 2.200 rpm
OPERATING WEIGHT 24,000 kg(52,910 lb) - 24,560 kg (54,140 lb)
STANDARD BUCKET 0.51 m3-1.34m3 (.67-1.75 yd3 )
OVERVIEW
Powered by a Cummins B6.7 Stage 5/Tier 4 Final diesel engine, the HX220A L complies with the international Stage 5 emissions control standard. New features like visibility and handle improvement, automatic engine shutdown, auto safety lock, enhanced cabin visibility, and eco gauge lifting mode can help improve productivity on hard to handle jobs.
All Hyundai excavators are known for fast cycle speeds, impressive hydraulic power and precision control. At Hyundai, reliable productivity is more than just a promise. The robust upper and lower frame structure can endure external shock and heavy workloads for many thousands of hours.
STANDARD FEATURES
OPTIONAL FEATURES
Performance Cummins Performance Engine (NEW) Eco report (NEW) Lifting mode (NEW) Variable power control Attachment flow control Fuel efficiency Cycle time improvement Convenience Deluxe operator's seat Intelligent 8 touchscreen monitor Advanced audio system Innovative haptic control module Visibility and handle improvement (NEW) Key on init work mode (NEW) Serviceability & Safety ECD (Engine Connected Diagnostics) (NEW) Auto safety lock (NEW) Electronic swing parking brake (NEW) Enhanced cabin visibility Easy access to DEF system Cab air filter access Upper-structure access Stacked cooler design
RELIABILITY & DURABILITY
Hyundai construction equipment is precision designed with trusted and proven components and systems from leading OEM's. The HX235A LCR Compact Radius Excavator is designed to be economically rugged and reliable for longer up time, reduced operating cost and improved productivity. Through a combination of innovative hydraulic system enhancements, Hyundai A-Series HX excavators achieve faster cycle speeds than previous models, which increases productivity.
PERFORMANCE
CUMMINS PERFORMANCE SERIES ENGINE
Combined with the engineering and product design expertise of Hyundai, the Stage 5 Cummins Performance Series engines in the new A-Series machines will deliver substantial performance gains from a smaller, lighter power package. While Stage 5 guidelines do not apply in the USA, the Cummins Performance Series engines featured in A-Series also satisfy Tier 4 Final emissions control requirements. The Stage 5-compliant Cummins Performance Series engines integrate the newest after treatment system - the Single Module - with leading combustion and air-handling technology to be Exhaust Gas Recirculation (EGR)-free for simpler, reduced installation costs.
PERFORMANCE
VARIABLE POWER CONTROL
The A-Series HX excavators introduce variable power control with three power modes to ensure the highest performance in any operating environment. P (power mode) maximizes speed and power for heavy work. S (standard mode) optimizes performance and fuel efficiency for general work. E (economy mode) improves control and efficiency for light work.
PERFORMANCE
ATTACHMENT FLOW CONTROL
The A-Series HX excavators improves pump flow rate by giving the operator independent control of two pumps. It optimizes flow rate settings according to the attachment type (10 breaker types and 10 crusher types), which is ideal for various applications.
CONVENIENCE
INTELLIGENT 8 TOUCHSCREEN MONITOR
The 8-inch interactive touchscreen color display - with centralized switches - allows the operator to check and manage most features of machine operation, switches and diagnostics, all in one convenient location.
CONVENIENCE
ADVANCED AUDIO SYSTEM
The audio system includes an AM/FM radio, a USB-based MP3 player, an integrated Bluetooth hands-free feature and a built-in microphone to allow for phone calls while at work and in transit. The audio system controls are located on the right side of the operator for convenient access.
CONVENIENCE
INNOVATIVE HAPTIC CONTROL
Haptic control is a common technology found on luxury automobiles that makes selecting menus and adjusting settings easy. The haptic remote control uses vibrations and pulses to guide the operator through menu selections, enabling control of the accelerator, air conditioner, and all functions within the cluster for maximum convenience.
SERVICEABILITY
EASY ACCESS TO DEF SYSTEM
The DEF/AdBlue compartment and access door received a new and improved design change which allows for better accessibility to both the DEF fill port, pump and filter. A more visible Ÿ to FULL sight gauge was also added (replacing the previous indicator) to prevent overfilling of the tank.
SERVICEABILITY
STACKED COOLER DESIGN
A-Series HX excavators feature aluminum open-core coolers mounted in a stacked configuration to improve air flow, enhance cooling efficiency and improve serviceability.
SAFETY
AAVM (ALL AROUND VIEW MONITORING)
The Hyundai-exclusive AAVM video camera system provides the operator a 360-degree field of view on the monitor, which greatly contributes to work site safety. Part of this system includes IMOD (Intelligent Moving Object Detection), which alerts the operator to the presence of people or objects within a 5 meter (16 ft) range of operation.
SAFETY
ANTI-SLIP SURFACE
Hyundai's proprietary, patented anti-slip surface uniquely designed to prevent accidental slips and falls that can result in injury when working or inspecting the upper structure of the machine. The rubber tread surface is less abrasive on knees when kneeling and performing inspections.
