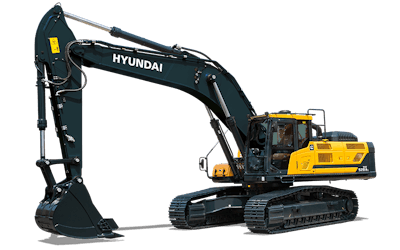

HX520A L
NET POWER 395 HP (295 kW) at 2,100 rpm
OPERATING WEIGHT 54, 750 kg (120, 704 lbs)
STANDARD BUCKET 2.6 m3 (3.41 yd³)
OVERVIEW
Powered by a Cummins X12 Stage 5 / Tier 4 Final diesel engine, the HX520A L complies with the international Stage 5 emissions control standard. New features like visibility and handle improvement, automatic engine shutdown, auto safety lock, enhanced cabin visibility, and eco gauge lifting mode can help improve productivity on hard to handle jobs.
All Hyundai excavators are known for fast cycle speeds, impressive hydraulic power, and precision control. At Hyundai, reliable productivity is more than just a promise. The robust upper and lower frame structure can endure external shock and heavy workloads for many thousands of hours.
HX520A L KEY FEATURES
STANDARD FEATURES
OPTIONAL FEATURES
Performance Cummins Performance Engine (NEW) Eco report (NEW) Lifting mode (NEW) Variable power control Attachment flow control Fuel efficiency Cycle time improvement Convenience Deluxe operator's seat Key on init work mode (NEW) Visibility and handle improvement (NEW) Intelligent 8 touchscreen monitor Advanced audio system Innovative haptic control module Serviceability & Safety ECD (Engine Connected Diagnostics) (NEW) Auto safety lock (NEW) Electronic swing parking brake (NEW) Enhanced cabin visibility Easy access to DEF system Cab air filter access Upper-structure access Stacked cooler design
RELIABILITY & DURABILITY
Hyundai construction equipment is precision designed with trusted and proven components and systems from leading OEM's. The HX520A L is designed to be economically rugged and reliable for longer up time, reduced operating cost and improved productivity. Through a combination of innovative hydraulic system enhancements, Hyundai A-Series HX excavators achieve faster cycle speeds than previous models, which increases productivity.
PERFORMANCE
CUMMINS PERFORMANCE SERIES ENGINE
Combined with the engineering and product design expertise of Hyundai, the Stage 5 Cummins Performance Series engines in the new A-Series machines will deliver substantial performance gains from a smaller, lighter power package. While Stage 5 guidelines do not apply in the USA, the Cummins Performance Series engines featured in A-Series also satisfy Tier 4 Final emissions control requirements. The Stage 5-compliant Cummins Performance Series engines integrate the newest after treatment system - the Single Module - with leading combustion and air-handling technology to be Exhaust Gas Recirculation (EGR)-free for simpler, reduced installation costs.
PERFORMANCE
VARIABLE POWER CONTROL
The A-Series HX excavators introduce variable power control with three power modes to ensure the highest performance in any operating environment. P (power mode) maximizes speed and power for heavy work. S (standard mode) optimizes performance and fuel efficiency for general work. E (economy mode) improves control and efficiency for light work.
PERFORMANCE
ATTACHMENT FLOW CONTROL
The A-Series HX excavators improves pump flow rate by giving the operator independent control of two pumps. It optimizes flow rate settings according to the attachment type (10 breaker types and 10 crusher types), which is ideal for various applications.
PERFORMANCE
FUEL EFFICIENCY
HX series excavators are designed with fuel efficient tier 4 final engines, hydraulic advancements and electronic improvements that improve overall fuel efficiency by as much as 10% compared to the previous series.
CONVENIENCE
INTELLIGENT 8 TOUCHSCREEN MONITOR
The 8-inch interactive touchscreen color display - with centralized switches - allows the operator to check and manage most features of machine operation, switches and diagnostics, all in one convenient location.
CONVENIENCE
ADVANCED AUDIO SYSTEM
The audio system includes an AM/FM radio, a USB-based MP3 player, an integrated Bluetooth hands-free feature and a built-in microphone to allow for phone calls while at work and in transit. The audio system controls are located on the right side of the operator for convenient access.
CONVENIENCE
INNOVATIVE HAPTIC CONTROL
Haptic control is a common technology found on luxury automobiles that makes selecting menus and adjusting settings easy. The haptic remote control uses vibrations and pulses to guide the operator through menu selections, enabling control of the accelerator, air conditioner, and all functions within the cluster for maximum convenience
CONVENIENCE
CONVENIENT CONTROLS & DELUXE OPERATOR'S SEAT
A-Series HX excavators feature deluxe operator's seats with air suspension, selectable heat and adjustable armrests. Seats are fully adjustable for maximum operator comfort. A convenient clustering of electronic controls and monitoring functions assist with improved operator accuracy and efficiency.
SERVICEABILITY
EASY ACCESS TO DEF SYSTEM
The DEF/AdBlue tank is installed next to the tool box. Its inlet is remotely located for easy access and convenient supply. A red lamp signal warns of overfill. The DEF/AdBlue supply module is attached on the side of the fuel tank for easy maintenance and filter replacement.
SERVICEABILITY
CAB AIR FILTER ACCESS
Cab air filter is conveniently accessible from ground level by way of a lockable door on the cab.
SERVICEABILITY
UPPER-STRUCTURE ACCESS
HX series excavators are equipped with large grab rails, guard rails and a proprietary anti-slip surface on the upper structure that make accessing key service areas easier and safer.
SAFETY
AAVM (ALL AROUND VIEW MONITORING)
The Hyundai-exclusive AAVM video camera system provides the operator a 360-degree field of view on the monitor, which greatly contributes to work site safety. Part of this system includes IMOD (Intelligent Moving Object Detection), which alerts the operator to the presence of people or objects within a 5 meter (16 ft) range of operation.
SAFETY
ANTI-SLIP SURFACE
Hyundai's proprietary, patented anti-slip surface uniquely designed to prevent accidental slips and falls that can result in injury when working or inspecting the upper structure of the machine. The rubber tread surface is less abrasive on knees when kneeling and performing inspections.
SAFETY
AUTO-TRAVEL ALARM
An auto-travel alarm will sound as soon as travel is engaged forward or reverse. This standard safety feature greatly increases job site safety by alerting workers around the machine. This alarm may be deselected by a convenient switch.
