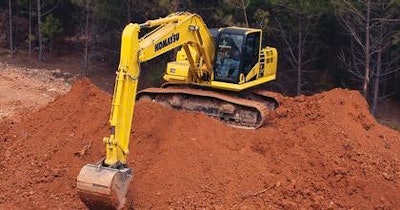

PC290LCi-11
Horsepower 196 HP @ 2,000 rpm
Operating weight 70,702 - 72,091 lbs.
Bucket capacity 0.76 - 2.13 yd³
Leave nothing behind
Expect first-to-last-pass accuracy in a stable and productive machine across multiple applications, without the transportation-permit headaches of bigger machines. The 5th intelligent machine control excavator in the Komatsu family, the PC290LCi-11 leverages proven technology that minimizes over-excavation and leaves nothing behind but a clean and accurate graded surface.

Large high-strength steel castings on the boom, arm and bucket link. Closed-center load-sensing hydraulics for precise, fine control. Large displacement high-efficiency pumps provide optimal attachment flow. Large, spacious, quiet cab featuring standard air suspension seat.

Features and benefits
Adjusts to the operator's experience level
A fully integrated grade assist automatically traces the target surface to minimize over digging. A built-in facing angle compass ensures the machine is aligned with the target surface.

Auto stop control
To help eliminate potential damage during boom or bucket operation, the machine automatically stops when the bucket edge reaches the design surface.

Minimum distance control
iMC controls the bucket by automatically selecting the point closest to the target surface, which minimizes operator input while providing higher accuracy and grading confidence.

Critical precision for utility applications
For utility customers looking for the utmost precision, the excavator allows your operator to input structure, invert elevations of pipe runs and automatically calculates fall of pipe.

Powerful, advanced engine
Your fleet can be environmentally friendly without sacrificing power. Excavators with iMC 1.0 are equipment with a Tier 4 Final certified Komatsu SAA6D107E-3 engine, which features an integrated diesel particulate filter, hydraulically actuated Komatsu variable geometry turbocharger and selective Ccatalytic reduction system.

Stroke sensing hydraulic cylinder
Stroke sensing hydraulic cylinders provide real-time position that is immediately displayed to the operator. This is an improvement over conventional aftermarket machine guidance (indicate only) systems with tilt sensors that require time to stabilize.

Robust undercarriage
A large counterweight and robust undercarriage components help provide outstanding stability.\

Specifications for PC290LCi-11
Engine
Model Komatsu SAA6D107E-3* Type Water-cooled, 4-cycle, direct injection Aspiration Komatsu variable geometry turbocharged, aftercooled, cooled EGR Number of cylinders 6 Bore 4.21 in Stroke 4.88 in Piston displacement 408 in³ Horsepower: SAE J1995 : Gross 213 HP ISO 9249/SAE J1349 : Net 196 HP Rated rpm 2,050 rpm Fan drive type Mechanical Governor All-speed control, electronic. *EPA Tier 4 Final emissions certified

Hydraulics
Type: HydrauMind (Hydraulic Mechanical Intelligence New Design) system, closed-center system with load sensing valves and pressure compensated valves

Number of selectable working modes 6
Main pump: Type Variable displacement piston type Pumps for Boom, arm, bucket, swing, and travel circuits Maximum flow 126.5 US gpm Supply for control circuit Self-reducing valve Hydraulic motors: Travel 2 x axial piston motor with parking brake Swing 1 x axial piston motor with swing holding brake Relief valve setting: Implement circuits 5,400 psi Travel circuit 5,400 psi Swing circuit 4,190 psi Pilot circuit 470 psi Hydraulic cylinders: Number of cylinders Bore x Stroke x Rod Diameter Boom / 2 5.5 x 51.2 x 3.9 in Arm / 1 5.9 x 64.3 x 4.3 in Bucket / 1 5.5 x 39.7 x 3.9 in Drives and Brakes Steering control Two levers with pedals Drive method Hydrostatic Maximum drawbar pull 56,000 lbs. Gradeability 70%, 35° Maximum travel speed: (Auto-Shift) High 3.4 mph Mid 2.5 mph Low 1.9 mph Service brake Hydraulic lock Parking brake Mechanical disc brake Swing System Drive method Hydrostatic Swing reduction Planetary gear Swing circle lubrication Grease-bathed Service brake Hydraulic lock Holding brake/Swing lock Mechanical disc brake Swing speed 10.5 rpm Swing torque 64,292 ft.-lbs. Undercarriage Center frame X-frame Track frame Box-section Seal of track Sealed track Track adjuster Hydraulic Number of shoes 48 each side Number of carrier rollers 2 each side Number of track rollers 8 each side Sound Performance Exterior ISO 6395 104 dB(A) Operator ISO 6396 70 dB(A) Coolant & Lubricant Capacity (Refilling) Fuel tank 105.7 US gal Coolant 9.5 US gal Engine 6.1 US gal Final drive, each side 2.1 US gal Swing drive 1.9 US gal Hydraulic tank 34.9 US gal Hydraulic system 66.8 US gal DEF tank 6.1 US gal Operating Weight (Approximate) Operating weight includes 20 ft. 2 in one-piece boom, 10 ft. 6 in arm, SAE heaped 2.13 yd3 bucket, rated capacity of lubricants, coolant, full fuel tank, operator, and standard equipment.. Triple-Grouser Shoes Operating Weight: Ground Pressure 28 in 70,702 lbs. 7.48 psi 31.5 in 71,540 lbs. 6.63 psi 33.5 in 72,091 lbs. 6.28 psi
