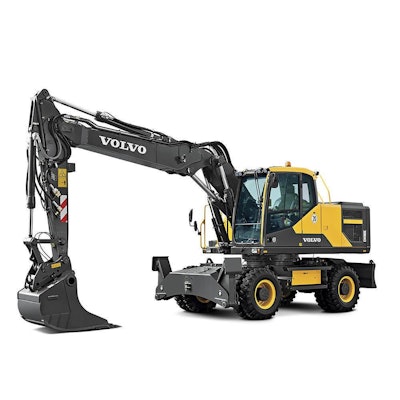

VOLVO EW180E
Built with our customers for our customers, the new Volvo EW180E is the most advanced multi-tool carrier in the industry. Made in Germany, Volvo’s wheeled excavator boast a 40 year heritage and have continuously developed into highly versatile and high quality machines. With manoeuvrability at the heart of its design, our new EW180E will perform time and time again on any job site.
TECHNICAL SPECIFICATIONS FOR EW180E
Here are the key specifications for this product model
METRIC IMPERIAL
Operating weight 18,200 - 20,300 kg Gross power 129 kW ...at engine speed 2,000 rpm Bucket capacity 0.87 m³ Max lifting capacity 9,800 kg ...at reach / height 4.5 / 3 m Max. digging reach 10,000 mm Max. digging depth 6,000 mm Breakout force, ISO (Boost) 136 kN Tail swing radius 2,550 mm
THE TRAILER HITCH
Made in Germany, the Volvo EW180E wheeled excavator is an efficient and versatile machine that can make your life easier on the job site as well as increase productivity. Take all your tools with you in one trip and avoid any unnecessary travelling.
WORK MODES
The E-Series Wheeled Excavators feature four work modes combined with three travel speeds. In total 12 different combinations to be chosen to provide optimum performance and improved fuel efficiency.
BREAKER/SHEAR (X1) AND TILT/ROTATE (X3) MANAGEMENT
Increase your wheeled excavator versatility with optional hydraulics functions X1 breaker/shear and X3 tilt/rotate. X1 function utilizes the main system hydraulic flow to operate attachments requiring one or two way flow whereas X3 function provides an appropriate two way flow for tilting or rotating attachments.
DRAWER TYPE TOOL BOX
This newly developed and unique concept has been tested to carry up to 120kg. Due to the smooth sliding action, it’s much easier for the operator to pull out chains using the machine or other equipment manually without having to bend over or strain their body. Because it acts as a slide-out drawer, items are more visible so you can check and adjust your toolbox content much easier. A mechanical stopper has been added to prevent it from sliding out of the machine and the box dividers can be adjusted into five different positions.
CAB
To ensure comfort and productivity, operating the EW180E has been designed with easy operation in mind. The cab, HMI and luxuries like climate control all contribute to a happier and more comfortable operator for increased uptime.
HM
All machine interfaces – including the joysticks, keypad and LCD monitor – are ergonomically positioned and designed for optimum control and efficiency. For operator convenience and ease of use, the number of switches has been significantly reduced.
ROPS
The Volvo cab features Roll Over Protective Structure (ROPS) safety certification, which provides more operator safety and peaceof-mind when operating in tough environments. It also provides greater ergonomic comfort leading to reduced fatigue and increased productivity.
IN CAB FLUID CHECK
As soon as you start up your machine it checks all fluid levels on board, including engine oil and hydraulic fluid. The machine’s electronic display will tell the operator if any fluids need attention, keeping the machine running at its best and free from any unscheduled downtime
FUEL FILLER PUMP
The fuel filler electric pump can deliver 50 liters of fuel per minute for easy and clean filling of the fuel tank from ground level. It is conveniently located next to the fuel tank.
BOOM SUSPENSION SYSTEM
It’s not just being comfortable in the machine that is important – confidence while operating is also a key element in ensuring productivity. The EW180E wheeled excavator is equipped with the latest features to make an operator feel safe and in control of the machine at all times.
BOOM SUSPENSION SYSTEM
It’s not just being comfortable in the machine that is important – confidence while operating is also a key element in ensuring productivity. The EW180E wheeled excavator is equipped with the latest features to make an operator feel safe and in control of the machine at all times.
NDERCARRIAGE – WITH OR WITHOUT TRAILER HOOK
Volvo’s built to last undercarriage is available with a trailer hook for added convenience. Volvo offers the machine with a hitch so you can pull trailers up to eight tonnes with dry run brakes and 3 tonnes without brakes.
ARM/GRAPPLE SYSTEM
Expand your working scope with a wide range of boom and arm options. The different arm lengths can be chosen according to jobsite requirements and market legislation. The grapple manoeuvre connection allows the exchange of tools. Instead of going to the cylinder, the oil is redirected directly to the attachment which enables the operator to steer the attachment with the right hand joystick.
TYRES
Choose from a wide range of high quality tyres to best suit your jobsite, including single and twin tyres. Depending on ground conditions, Volvo offers 12 different configurations of tyres from eight different suppliers.
ENGINE
For maximum efficiency and reliability, the EW180E features Volvo’s most powerful Stage IV engine. The machine has also been designed and rigorously tested to reduce fuel consumption and increase your productivity.
ECO MODE
For increased fuel efficiency ECO mode turns on automatically, which reduces your fuel consumption while maintaining productivity.
DESIGN AND TESTING
The Volvo EW180E wheeled excavator has been designed and tested to ensure the highest standard of reliability and efficiency. Components, systems and technology work together to increase machine life and productivity.
ROBUST AXLES
The robust excavator axles with automatic or operator controlled front axle oscillation are highly durable and made to last for increased wear and component life.
GROUND CLEARANCE
The undercarriage protects itself with high ground clearance and is strong enough to endure hard ground and tough surface conditions.
