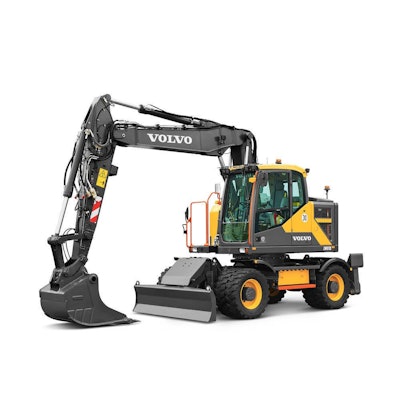

VOLVO EWR170E
Built with our customers for our customers, the new Volvo EWR170E features one of the shortest tail swings on the market. Equipped with the latest features, powerful engine and intelligent technology, the EWR170E operates with efficiency and control, for ultimate productivity.
ECHNICAL SPECIFICATIONS FOR EWR170E
Here are the key specifications for this product model.
METRIC IMPERIAL
Operating weight 17,950 - 19,200 kg Gross power 115 kW ...at engine speed 2,000 rpm Bucket capacity 0.7 m³ Max lifting capacity 5,500 kg ...at reach / height 6 / 1.5 m Max. digging reach 9,360 mm Max. digging depth 5,750 mm Breakout force, ISO (Boost) 126 kN Max speed 35 km/h Tail swing radius 1,790 mm
SHORT SWING PERFORMANCE
Joining the Volvo excavator family is the EWR170E, delivering everything that you would expect from an E-Series excavator and more. Work and perform in narrow and confined spaces with Volvo’s short swing radius wheeled machines, featuring one of the shortest tail swing on the market.
STANDARD OR WIDE AXLES
To boost stability, the EWR170E is optionally equipped with a 2 750 mm axle and blade.
CONTROLLABILITY
Take on any application with the improved load-sensing hydraulic system that allows maximum utilization of available engine power, increasing controllability and responsiveness.
BUILT IN PARTNERSHIP
At Volvo, we go the extra mile to make sure our customers are included throughout the entire engineering journey of our machines. Offering on-site demonstrations and test drives, we give customers the opportunity to tailor their machine to the demands of their jobsites. Rigorously tested, the EWR170E is designed to achieve optimum real-world performance - experience continuous improvement with Volvo.
SAFER, FROM THE INSIDE AND OUT
Find your way easily when entering and exiting the machine, thanks to bright steps and handrails. As an option, the welcome light can now be controlled remotely, to guide you in the darkness.
LONGER HOSE LIFE
To increase component life, the hose routing between the boom and arm has been redesigned. The new shorter hoses enhances durability, and reduces the chance of damage.
CLEAN AND PRODUCTIVE
Reduce the risk of damage to your machine, with new axle mounted mudguards. Designed with a large surface area following the wheel arch, the mudguards will help to keep your machine cleaner for longer.
SEE MORE, DO MORE
Conveniently designed to make life easier on the jobsite, the EWR170E is equipped with the latest features to increase productivity. Take on the most demanding working environments from the comfort of the spacious Volvo Care Cab, boasting all-around visibility and ergonomically-positioned controls.
OPERATOR CONVENIENCE
Operate in comfort every day, with a number of features that contribute to a more productive environment. These include the drawer type tool box, trailer hitch, refuelling pump, in-cab fluid check, and Bluetooth. Customize the controls on the joystick, and create a short cut for easy operation of the wipers or mute function.
COMFORT DRIVE CONTROL
New for the Volvo wheeled excavator range, Comfort Drive Control gives the operator the opportunity to control the machine using the roller on the joystick, up to 20km/h. Enjoy easy operation with an array of functions at your fingertips. You can opt to integrate blade/outrigger controls in the left-hand joystick.
COMFORT AT SPEED
Swing into action with superior performance and efficiency. The versatile EWR170E combines power, fuel efficiency, easy service and smart features for an all-round machine that’s in tune with your needs.
POWER UP, FUEL DOWN
Move more with less thanks to the powerful Volvo engine. To reduce fuel consumption, the machines are also equipped with auto idle and auto engine shut down functions. ECO mode turns on automatically to maintain productivity and increase fuel efficiency and the passive regeneration process automatically cleans the DPF filters without any impact on performance.
BOOM FLOAT FUNCTION
Operation is made easier with the optional boom float function. The boom automatically follows the attachment – bucket, hammer or vibration plate. No excessive force on the attachment possible resulting in longer life for the attachment and the machine.
VOLVO SMART VIEW
Increase visibility using the rear view and side view cameras – which come as standard. Or select Volvo Smart View. This smart option offers a bird’s-eye-view of the machine in real-time, as well as enhanced visibility of all angles, to help you navigate through tough situations.
STEELWRIST® TILTROTATOR
To ensure your business runs smoothly, Volvo invests in the intelligent engineering of all machines – but we don’t stop there. As your partner in production, we support what you do with the best equipment for the job. Our portfolio of attachments and services is designed to complement your machine’s performance and boost your profitability.
MATCH AND ATTACH
Get the most out of your wheeled excavator with our range of purpose-built attachments, designed to work in perfect harmony with your machine. Form one solid and reliable unit that delivers improved cycle times and increased fuel efficiency, by customizing your machine with quality Volvo attachments, which match your needs.
VERSATILITY
Enjoy easy and efficient changes of your attachments with the Attachment Management System. Storing the settings for up to 20 different attachments, our system will keep downtime to a minimum. Moreover, a new shortcut button is located on the consol to enable simple access to the attachments menu.
MACHINE MONITORING MADE EASY
Stay ahead of unscheduled downtime and check that your machine is being operated efficiently with CareTrack – the state-of-the-art telematics system from Volvo. Stay informed and receive reports, alarms and information such as fuel status, machine location and hours, so you can plan your service more efficiently
HERE TO SUPPORT YOU
Maintain productivity and machine uptime with our range of widely available, tested and approved Genuine Volvo Parts – all backed by Volvo warranty. Here with the complete solution, we’ll help you stay on track, offering flexible maintenance and repair options, as well as planned servicing, to extend the life of your excavator.
