L 538

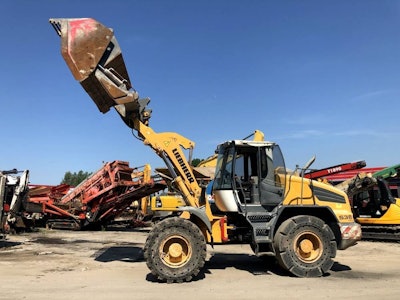

Wheel loader
KEY SPECS
Tipping load 7,720 - 10,200 kg
Bucket capacity 2.30 - 6.50 m³
Operating weight 13,500 - 15,000 kg
Rated output ISO 14396 / ECE-R.120 123 kW / 167 HP
Availability in the following countries
Canada (en)
United States of America (en)
Overview
The all-round mid-range wheel loaders prove their worth in all areas of use, achieving excellent productivity. Lift arms optimised for use and wide-ranging attachments in place make them extremely versatile and universally applicable.
Features and benefits
Adaptive working lighting
The adaptive working lighting is an intelligent lighting control system that adjusts the brightness of the headlights to suit the application.
Active personnel detection at the rear
The active personnel detection monitors the rear area of the wheel loader and automatically warns of dangers on the display and with acoustic signals. Another aid for avoiding collisions is the brake assistant.
Roof camera for front area monitoring
The roof camera offers the operator an extended field of vision and excellent visibility of the front operating area of the wheel loader.
Integral tyre pressure monitoring system
With the aid of sensors installed on the tyres and protected from damage, the system records the status of the tyres and indicates this on the display in the operator's cab.
Joystick steering
The optional joystick steering integrated in the operator's seat is a new, innovative and improved steering system. This means that all working and driving functions of the machine can be controlled with precision and a high degree of sensitivity.
Operator's cab without steering wheel / steering column - joystick steering only
The operator's cab is also optionally available without steering wheel and column with joystick steering only. Eliminating the need for the operator to move their hands between the steering unit and the control unit increases safety and comfort.
LIKUFIX
LIKUFIX is a hydraulic quick hitch with an integral automated hydraulic coupling system, which is available as an option. A wide range of hydraulic and mechanical attachments can be changed fully automatically, safely and without any oil leaks direct from the cab in a matter of seconds by pressing a button. LIKUFIX contributes to higher utilisation of the wheel loader, thus increasing operational efficiency.
Skyview 360°
Skyview offers the operator a 360-degree view around the wheel loader at all times, with four additional cameras covering the entire machine environment.
Liebherr weighing system with Truck Payload Assist
The Liebherr weighing system serves as a checking scale and functions automatically and intelligently with dynamic weighing range adjustment. The weighing extends over a large lifting range without the need for a special lifting height to be reached.
