1050R

13d017e4
7fcf56c2

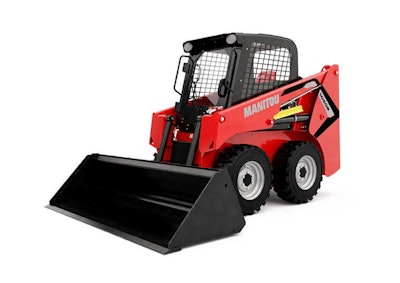

1050 R
Compact Loaders
Rated Operating Capacity1049 lbsOverall Operating Height - Fully Raised140 inDump reach - Full height23 inOverall length with bucket114 in

Carry out your leveling, loading and grading tasks with ultra-compact 1050 R skid loader. The compactness of this Manitou loader and the ergonomic driving position allows you to operate easily, even in the most confined, difficult to access spaces. Enjoy the versatility of the ultra-compact 1050 R

Capacities
Rated Operating Capacity1049 lbsRated Operating Capacity with Optional Counterweight1175 lbsUnladen weight4200 lbs

Weight and dimensions
Overall Operating Height - Fully Raised140 inHeight to Hinge Pin – Fully Raised108 inOverall Height to Top of ROPS70 inDump angle at full height42 °Dump height84 inOverall length with bucket114 inDump reach - Full height23 inRollback at ground29 °Seat to ground height33 inWheelbase34 inOverall width less bucket48 inBucket Width55 inGround clearance6 inOverall length - Less Bucket89 inDeparture angle26 °Clearance Radius - Front with Bucket69 inClearance Circle - Front without Bucket44 inClearance Circle - Rear54 in

Engine
Engine brandYanmarEngine model3TNV88C-KMSGross Power (kW)25.50 kWNet Power (kW)24.70 kWMax. torque / Engine rotation108 Nm / 2800 rpmBattery12 VAlternator40 kWStarter (kW)2.30 kW

Hydraulics
Standard flow - Auxiliary hydraulics55.10 l/minAuxiliary Hydraulic Pressure2750 PSI

Tank capacities
Fuel tank10 US galReservoir Capacity Hydraulics8 US galDisplacement0 US gal

Noise and vibration
Environmental noise (LwA)101 dB(A)Noise at driving position (LpA)80 dB(A)Whole-Body Vibration (ISO 2631-1)0.81 m/s²Vibration to whole hand/arm< 0.93 m/s²
