1650R

13d017e4
1261849c

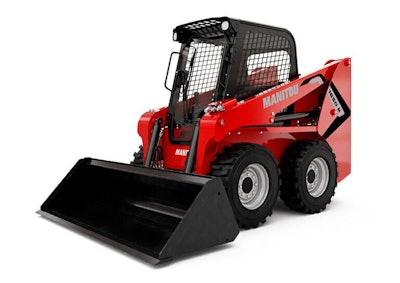

1650 R Compact Loaders
Rated Operating Capacity748.00 kgOverall Operating Height - Fully Raised3876.00 mmDump reach - Full height579.00 mmOverall length with bucket3101.00 mm

Get a powerful and versatile solution for your farm or construction operation with the 1650 R skid loader. Very compact, this latest generation machine is ideal for your most demanding applications in confined spaces and on uneven or irregular ground. Combining driving comfort, precision of movement, multifunctional use (with several compatible attachments), resistance and ease of maintenance, the 1650 R compact skid loader meets all your requirements for loading / unloading, palletizing, agriculture, transportation heavy loads ... See it for yourself today!

Capacities
Rated Operating Capacity748 kgRated Operating Capacity with Optional Counterweight816.50 kgUnladen weight2796 kg

Weight and dimensions
Overall Operating Height - Fully Raised3876 mmHeight to Hinge Pin – Fully Raised3023 mmOverall Height to Top of ROPS1948 mmDump angle at full height38 °Dump height2380 mmOverall length with bucket3101 mmDump reach - Full height579 mmRollback at ground28 °Seat to ground height904 mmWheelbase988 mmOverall width less bucket1544 mmBucket Width1562 mmGround clearance160 mmOverall length - Less Bucket2385 mmDeparture angle21 °Clearance Radius - Front with Bucket1869 mmClearance Circle - Front without Bucket1153 mmClearance Circle - Rear1466 mm

Performances
Travel Speed with Two-Speed Option - Maximum19.50 km/hTravel speed (unladen)12.60 km/h

Engine
Engine brandYanmarEngine model4TNV88C-KMSGross Power (kW)52 kWNet Power (kW)51 kWMax. torque / Engine rotation241 Nm / 2500 rpmBattery12 VAlternator100 kWStarter (kW)3 kW

Hydraulics
Standard flow - Auxiliary hydraulics71.40 l/minAuxiliary Hydraulic Pressure207 barHigh-Flow Auxiliary Hydraulics – Option114 l/minHigh-Flow Auxiliary Hydraulics Pressure – Option200 bar

Tank capacities
Fuel tank62.50 lReservoir Capacity Hydraulics41.60 lDisplacement3.30 l

Fill out the form below to request more information about 1650R
