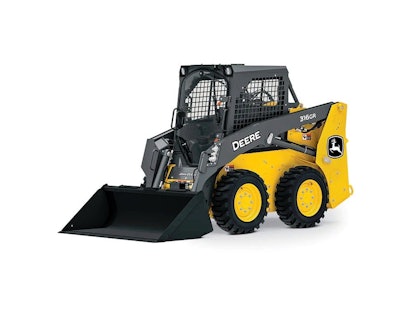

316GR Skid Steer
Rated Operating Capacity: 795 kg (1,750 lb.)Gross Horsepower: 48.5 kW (65 hp)Net Horsepower: 45.6 kW (61 hp)Operating Weight: 2806 kg (6,180 lb.)
Features
Radial-Lift Boom
The radial-lift boom offers more reach at mid-range lift heights, good for digging, grading, and backfilling. It provides powerful digging performance at a competitive price.
Engine
Final Tier 4 (FT4)/EU Stage IV diesel engine packs plenty of power and torque.Auxiliary flow rates make the most of an even broader range of attachments.Large coolers increase heat rejection for uninterrupted performance in severe, high-load conditions. Engine-mounted, belt-driven cooling fan delivers efficient, reliable performance.
Mobility
With a weight 6,180 pounds and convenient front and rear tie-downs, this skid steer is easy to trailer behind a pickup truck.Two-speed option provides faster transport speeds, to help boost productivity.
Cab & Controls
Optional joystick controls, air conditioning, and ride control provide cab comforts operators expect in this larger-performance model.Excellent all-around visibility is further enhanced with an LED side-lighting option.Optional rearview camera allows operators to see the jobsite behind the machine.
Serviceability
Swing-out rear door enables easy, ground-level access to daily service checkpoints and cooling system components.Hinged rear door and hydraulic cooler swing open, making trash removal and core cleanout simple.Spin-on engine oil and fuel filers mounted remotely behind the rear door allow quick changes.
Attachment-Ready
With the universal Quik-Tatch, you can go from skid steer bucket, to forks, to whatever, in just seconds. Each loader model delivers plenty of standard hydraulic power to operate augers, roller levels, trenchers, or power rakes, to list just a few.Engine Manufacturer Yanmar Engine Model 4TNV86CHT Emission Rating Tier 4 / Stage IV Aspiration Turbo Displacement, ltr (Inches³) 2.1 (128) Rated Engine Speed, rpm 2600 SAE Net Power, kW (hp) 45.6 (61) SAE Gross Power, kW (hp) 48.5 (65) Max. Gross Torque, Nm (lbf / ft) 207 (153) Drive Chain Rating [ANSI] 80 - HD Tire size - Standard 10 x 16.5
Two-Year/2,000-Hour Full-Machine Standard WarrantyEvery John Deere machine comes with a level of comfort through our full machine standard warranty. It promises we'll fix any defects in materials or workmanship on our compact equipment for two years after delivery or 2,000 hours.*
