TECHNICAL FEATURESCapacitiesRated Operating Capacity2767 lbsRated Operating Capacity with Optional Counterweight3000 lbsUnladen weight8150 lbsWeight and dimensionsOverall Operating Height - Fully Raised167 inHeight to Hinge Pin – Fully Raised56 inOverall Height to Top of ROPS81 inDump angle at full height42 °Dump height100 inOverall length with bucket148 inDump reach - Full height32 inRollback at ground29 °Seat to ground height40 inWheelbase49 inOverall width less bucket67 inBucket Width70 inGround clearance8 inOverall length - Less Bucket116 inClearance Radius - Front with Bucket90 inClearance Circle - Front without Bucket56 inClearance Circle - Rear66 inPerformancesTravel Speed with Two-Speed Option - Maximum12 mphTravel speed (unladen)7 mphWheelsStandard tyres12.00x16.5 HDEngineEngine brandYanmarEngine model4TNV98C-NMSLV Stage VEngine normStage VGross Power (kW)53.70 kWNet Power (kW)52.70 kWMax. torque / Engine rotation294.20 Nm / 2500 rpmBattery12 VStarter (kW)3 kWHydraulicsStandard flow - Auxiliary hydraulics89 l/minHigh-Flow Auxiliary Hydraulics – Option132 l/minTank capacitiesFuel tank24 US galReservoir Capacity Hydraulics11 US galDisplacement1 US galNoise and vibrationEnvironmental noise (LwA)101 dB(A)Whole-Body Vibration (ISO 2631-1)1.07 m/s²Vibration to whole hand/arm< 1.50 m/s²

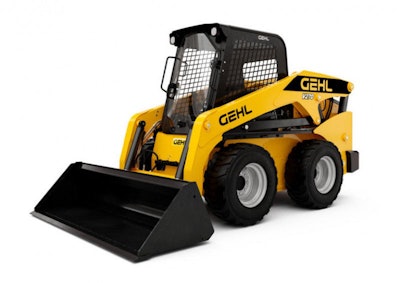

Fill out the form below to request more information about V270 GEN:2
Spec & Compare.
