Overview

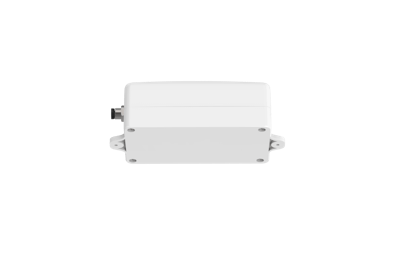

Ideal for heavy equipment tracking, and machines that provide power sources, the TennaMINI tracker (Plug-In) provides precise construction equipment GPS tracking for heavy equipment and engine run-time data for high-value heavy yellow iron and mid-sized machines.
Best For – Heavy Equipment
- Excavators
- Dozers
- Cranes
- Pavers
- Loaders
- Graders
- Engine-powered Generators
- The list goes on!
Use
- This compact GPS equipment tracker plugs into the ignition system to read engine data and provides for precise GPS heavy equipment tracking and management for high-value yellow iron assets.
- TennaMINI is flexible, durable, easy-to-install and long-lasting for reliable equipment tracking and management.
Technology
- Data is transported across cellular networks directly to the Tenna platform for updates on asset location and ignition start and stop events.
Reporting
- Device GPS position (i.e., location) is reported every two minutes when running (ignition on), and every 23 hours when the engine is not running (ignition off).
- Operating time is indefinite with long-life battery that recharges when plugged into the asset battery.
- Operates on full charge for three years (up to 1,000 pings) without power from the asset engine with single message cycle/day
Specs
- Self-contained LTE Cat M1 GPS tracker.
- Built-in cellular and GPS antennas for easy installation.
- Operating modes include:
- Running (Ignition on) – reports location and engine ignition data
- Not running (Ignition off) – reports location only
- Size – 5″ L x 2.25″ W x 1.25″ H
Ruggedized
- IP67 rated and verified housing
- Tough dust and water-proof ASA housing for impact and thermal resiliency
- Rugged printed circuit assembly for high G-force tolerance
- High performance Battery Management System for battery protection
- Ultra-low standby power when asset is off – does not drain asset battery
