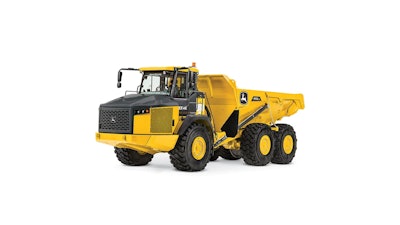

Whether it's 26 ton, 31 ton, 41 ton, or 46 ton, our ADTs deliver impressive power and torque for exceptional power-to-weight ratios and fast cycles. So you can keep working on steep slopes, through deep ruts, and in slippery muck. Onboard diagnostics help keep the operator in the know and on the go. Smart features such as on-the-fly auto-differential lock, tire-pressure monitoring, and onboard payload weighing help boost productivity and uptime, while helping to keep operating costs down.
Key Features
Engine
John Deere PowerTech¬ô employs external cooled exhaust gas recirculation (EGR), easily maintained exhaust and in-line diesel exhaust fluid (DEF) filters, and variable-geometry turbocharger (VGT).
Conserve power and fuel with engine, hydraulic, transmission, and service-brake coolers that run only when necessary. Reversible hydraulic-drive fan option back-blows cooler cores, minimizing the need for manual cleaning.
The system notifies operators of condition-based ash-service intervals for the diesel particulate filter (DPF) before service is required.
Cab Comfort
Quiet, pressurized cab features a new easy-to-read monitor and rear-camera display, along with options such as automatic temperature control (ATC) system that allows operators to simply select a desired temperature to get and stay comfortable.
Stairway lights can be turned on and off by pushing a button from ground level. They’ll also turn off automatically after a predetermined length of time.
Standard high-back air-suspension seat adjusts multiple ways for all-day support. Opt for the premium heated/ventilated seat with heavy-duty air-suspension and adjustable seat pan for additional comfort.
Ground-Level Maintenance
Filters, diagnostic ports, and hydraulic oil reservoir are easy to access. An industry-leading feature, Deere machines can be checked and serviced daily from the ground, eliminating the need for tie-offs ¬ó a big advantage on Mine Safety and Health Administration (MSHA)-regulated sites.
Optional factory-installed auto-lube system with ground-level refill is electrically powered and integrated with machine diagnostics to help verify daily maintenance is being performed.
Fuel and diesel exhaust fluid (DEF) refills are also easily accessible at ground level.
Standard Tire Pressure Monitoring
Standard tire pressure/temperature-monitoring system helps maximum tire life and fuel efficiency. A passive alarm appears on monitor if pressure drops by 10 percent.
Drive Modes
Normal mode for everyday operation.
Eco mode that, when conditions allow, conserves fuel by managing engine power delivery as well as optimizing transmission response for those conditions.
Traction mode, which optimizes differential lock for maximum tractive effort in soft and slippery ground conditions.
