Takeuchi Unveils TB395W Wheeled Excavator

7781e13d
The TB395W is powered by a Tier-4-Final-compliant diesel engine delivering 114 hp at 2,200 rpm and up to 339 ft. lbs. of torque.
The TB395W is powered by a Tier-4-Final-compliant diesel engine delivering 114 hp at 2,200 rpm and up to 339 ft. lbs. of torque.
Takeuchi

Takeuchi-US has added a wheeled model, the TB395W, to its growing excavator product line in North America. Formerly available only in select global regions, the TB395W provides owner/operators with a versatile option that combines powerful excavating performance with on-road capabilities.

“Wheeled excavators have become increasingly common in Europe over the years, and they’re gaining popularity in other regions as well,” said Lee Padgett, product manager for Takeuchi. “That’s one reason we’re introducing the TB395W to North America. It’s a high-performing excavator that provides all the unique benefits of a wheeled unit, including higher travel speeds and the ability to handle both on- and off-road applications.”

The TB395W excavator weighs 23,424 lbs. when equipped with outriggers and a blade. It’s powered by a Tier-4-Final-compliant diesel engine delivering 114 hp at 2,200 rpm and up to 339 ft. lbs. of torque. A closed-loop, load-sensing hydraulic system delivers control of the work equipment and a range of hydraulic attachments.

Operation

The TB395W features two steering modes -- 2WS (two-wheel steering) and 4WSC (four-wheel with crab steering). A two-piece boom with long arm allows for clearance between the bucket and dozer blade due to arm-mount position. This design allows TB395W operators to pull the bucket all the way back to the dozer blade, which is designed for working in narrow spaces or moving an obstacle out of the way. An Auto Cruise feature enables operators to set and adjust their travel speeds with a toggle switch. Auto Cruise is designed for using attachments that require a consistent, repeatable travel speed, such as a mulcher, mower or trencher.

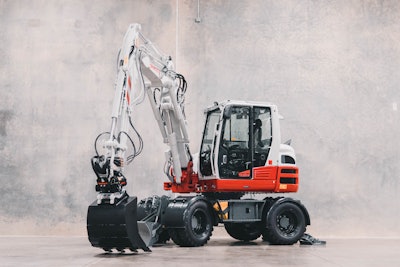

Img 7466TakeuchiThe excavator’s 13 ft., 5.2 in digging depth and 27-ft. cutting height makes it useful on construction sites. The TB395W offers a maximum bucket breakout force of 13,241 lbs., a maximum arm digging force of 8,925 lbs. and a traction force of 12,994 lbs. The TB395W is equipped with three auxiliary circuits that cater to different hydraulic requirements. The primary circuit delivers 32 gpm for use with hydraulic attachments. The secondary circuit provides 14.5 gpm, offering flexibility for a wide range of applications. Additionally, the third auxiliary circuit is specifically designed for use with a hydraulic quick coupler.

Takeuchi outfitted the TB395W with a newly redesigned interior to support the operator experience. The cab features multifunctional 8-in. color touchscreen monitors with integrated air conditioning and DAB radio functions. Using the machine’s jog dial, operators can navigate and control the TB395W’s monitor, including its HVAC and DAB radio functions. The TB395W includes a standard 270-degree camera to provide operators with a birds-eye view for safety throughout the jobsite.

Control and Telematics

One-touch control switches operate other machine functions, such as work lights, Standard and ECO working modes, primary auxiliary detent, low- and high-speed gear box, swing boom/second boom select, differential lock, manual regen/regen inhibit and lift overload alarm. A high-back, air-ride suspension seat, adjustable arm rests, low-effort pilot controls, large flat floor area and integrated footrests are also available inside the cab.

Takeuchi designed the TB395W for serviceability, with a wide-opening rear engine service door and a right-side cover, both of which open overhead. Both the service door and right-side cover are also constructed of durable steel and lockable to discourage vandalism and theft.

“We know from experience that machine owners are more likely to properly service and maintain their machines at the correct intervals when those tasks are simpler to perform,” said Padgett. “That’s why the TB395W’s design ensures easy access to key daily inspection points like the engine oil dipstick, engine oil filter, engine oil fill and more.”

Takeuchi’s Fleet Management (TFM) telematics system comes standard on the TB395W. TFM provides owner/operators with machine health and condition, run time (hours) and machine location, as well as remote diagnostics, scheduled maintenance reminders and customizable alert settings. TFM also gives owners the ability to geofence their machines, helping them protect and secure their investments.

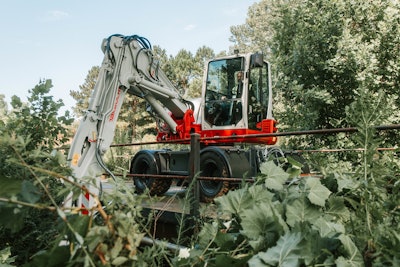

146 A2735 CopyTakeuchi

“As the world becomes increasingly urbanized, excavator owners and operators must frequently work on projects near city streets and other developed areas,” said Padgett. “The new TB395W provides the power of a tracked excavator but with less disruption to existing infrastructure and the ability to travel efficiently from Point A to Point B.”
