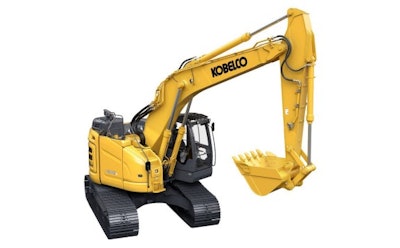

KOBELCO Showcases SK380SRLC-7 Large Short-Radius Excavator


KOBELCO offers the SK380SRLC-7 excavator in North America. This KOBELCO excavator sets the standard for large, short-radius machines, offering full-size capabilities with short rear swing capabilities and exceptional features.


The machine takes on the heaviest up-close work with confidence with only 6.5-in. of counterweight tail swing radius. With the ability to operate safely in a single 12-ft. lane, this machine is ideal for highway projects as well as any application requiring the use of a larger machine within a limited work area. Even with its compact design operators will find the SK380SR has a full-sized cab with all the comfort and control of a conventional excavator.

Suitable for urban jobsites, this model features a compact design and long digging reach to provide maneuverability and a broad working range. And with digging depths of 22 ft.,11 in. as well as powerful swing speeds, the SK380 delivers short cycle times.

This machine has a digging force up to 46,800 lbs. (ISO) and a maximum digging reach of 35 ft.,10 in.

Equipped with a 265-hp Isuzu Tier IV Final engine, the KOBELCO SK380 delivers full-size power during use. This engine is fitted with a diesel oxidation catalyst (DOC) and an SCR device to control emissions without using a diesel particulate filter (DPF).



Technology and Maintenance

The proprietary KOBELCO intelligent control system is showcased on the SK380, ensuring reliable engagement and disengagement across all machine functions. Heavy lift can be enabled when extra lift capacity is needed, while power boost instantly delivers 10% more power for additional digging capability with no time limit. Independent travel, a KOBELCO feature, allows for a smooth and constant travel speed even while swinging and using the front attachment.

When it comes to machine maintenance, the SK380 offers intuitive operation and comprehensive safety. Access to the cooling unit, engine compartment and electrical components help with maintenance. The SK380 is equipped with various cab features including an optimized control layout, wide access doors, powerful air conditioner, heated air ride suspension seat, ergonomic lever angles, LED interior lights, tilting left side console and an adjustable suspension seat. Furthermore, windows on all sides, as well as a rear view, right and left-side cameras provide visibility for safe operation.
