5300 Asphalt Pavers

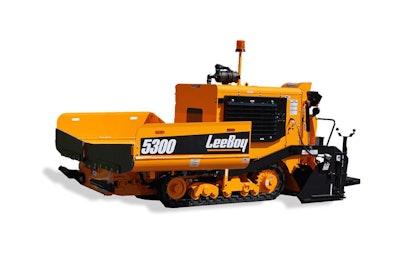

One of the industry's most versatile and quietest compact pavers, the LeeBoy 5300 asphalt paver handles the material load of a standard paver while allowing for the ability to fit into tight spaces. By maintaining a large capacity material hopper and ultra-efficient material management system, the paver provides the operator with precise control of the head of material at the main screed and hydraulic extensions. This unique design is ideal for the smallest of paving jobs to include cart paths, sidewalks, trenches, mill, patch and repair work.
LeeBoy 5300
Technical Specifications
Operator's Controls
All control switches are in a single control box which can be moved from right side to left sideColor graphic control screen with digital readouts. Review and monitor system vitals including: oil pressure, hour meter, fuel gauge, voltmeter, water temp, tachometer, hydraulic oil temp, pressure transducers, engine diagnostics
Dimensions
Length: 15' 5Width: 4' 5 transport9' 7 hopper wings downHeight: 7' 8Total Weight (with screed): 12,700 lbs
Engine
Kubota turbocharged dieselTier 4 Final - 64.4 hp (48 kw) @ 2,400 rpm
Capacities
Fuel: 25 gallonsHydraulic reservoir: 33 gallonsWashdown tank: 5 gallonsPaving WidthsVariable up to 7'
Product Specifications
LeeBoy 5300 Paver
The following specifications are based on the 5300 Paver manufactured by LeeBoy. Because of continuous equipment research and development, we reserve the right to change these specifications. For more information, questions or assistance preparing specifications, please contact your local LeeBoy Dealer.
1. Dimensions:
a. Length: 15' 5b. Width: 4' 5 transport9' 7 hopper wings down c. Height: 7' 8d. Total Weight (with screed): 12,700 lbs.
2. Engine:
a. Kubota turbocharged dieselb. Tier 4 Final - 64 hp (48 kw) @ 2,400 rpm
3. Capacities:
a. Fuel: 25 gallonsb. Hydraulic reservoir: 33 gallonsc. Washdown tank: 5 gallons
4. Hopper:
a. Hopper size: 7 tonb. Hopper height: 22
5. Paving Widths:
a. Variable up to 7'
6. Paving Depths:
a. Manual flight screws positioned on the screed to control material thicknessb. Depth: 0 to 6c. OPTIONAL: Hydraulically operated tow cylinders control material thickness with toggle switches for each side
7. Available Screeds:
a. Legend HD Mini Propane Screed: Variable up to 7', weight: 1,460 lbs View detailed Screed specificationsb. Legend HD Mini Electric Screed: Variable up to 7', weight: 1,425 lbsView detailed specifications
8. Under Auger Material Cutoff:
a. One hydraulically operated 3' 8 wide cutoff located under the augers and constructed of .375 A-36 steel plate
9. Material Augers:
a. Two independent hydraulically operated cast augers constructed with .625 AR 4140 HT (heat-treated) steel with replaceable flightsb. Augers are 12 diameter
10. Conveyor
a. Single 13.44 feeding conveyorb. Conveyor is controlled by automatic sensors
11. Operator's Platform:
a. Full machine width platform
12. Operator's Controls:
a. All control switches are in a single control box which can be moved from right side to left sideb. Color graphic control screen with digital readouts. Review and monitor system vitals including: oil pressure, hour meter, fuel gauge, voltmeter, water temp, tachometer, hydraulic oil temp, pressure transducers, engine diagnostics
13. Steering:
a. One electric steering box can be moved from left to right operating stationb. Electronically controlled pumps operated by the forward/reverse joysticks
14. Washdown System:
a. Electric HD pump and one 15' x .3125 diameter hose
15. Hydraulic System:
a. Variable volume hydraulic pumps for each driveb. Load sense pump controls augers, conveyor and all other hydraulic functionsc. A hydraulic gear pump powers the hydraulically driven fan and provides charge pressure to the variable volume pumpd. Hydraulic oil: all weather, all temperature
16. Push Rollers:
a. Two 2.88 diameter rollers with sealed bearings mounted to allow pivoting on frame
17. Track Drive System:
a. Hydrostatically powered, self-cleaning crawler type tracks consisting of drive sprocket, six rollers (two of which oscillate) and hydraulically adjustable front idlerb. Drive mechanism has two torque hubsc. Fail-safe brakes with anti-creep functiond. Track size: 7 wide x 5' 1 long poly (wheelbase) e. Paving speed: 0 to 151' per minute (1.7 mph)f. Travel speed: 0 to 239' per minute (2.7 mph)
18. Additional Standard Equipment:
a. Back-up alarmb. LED beacon lightc. LED work light package d. Sonic auger, sensors and cordse. Grade control wiring (Topcon or Spectra-Physics)
19. Optional Equipment:
a. Swivel/pivoting push rollerb. Hydraulic tow-pointsc. Dual grade control (Topcon)d. Dual grade and slope (Topcon)e. Left hand auger strike off platef. Right hand auger strike off plate
20. Training, Support and Company
a. Training and support manualsb. Optional on-site operator training by Dealerc. Two-year, unlimited hours warranty against any manufacturer defectsd. Extended warranty availablee. 55+ years manufacturing experiencef. ISO 9001 Certifiedg. Sourcewell Contract #052417-VTLh. Manufactured in the USA
