8510E Asphalt Pavers
Serving as a staple among commercial paving contractors, the LeeBoy 8510E delivers precise asphalt placement resulting in a flawless mat. Comprised of robust components for longer wear, this asphalt paving solution is perfect for contractors seeking a lower cost per ton. Embracing a large material receiving hopper and one of the widest conveyor system on the market, this paver is meant to deliver the utmost productivity between truckloads. If you desire an all-around commercial paving machine that delivers unmatched results, the 8510E is for you.

LeeBoy 8510E
Technical Specifications
Operator's Controls
Includes dual electronic steeringAll functions can be controlled from left sideRight side levers include screed raise/float, left and right cutoffs, hopper wings, and right screed extensionColor graphic control screen with digital readouts. Review and monitor system vitals including: oil pressure, hour meter, fuel gauge, volt meter, water temp, tachometer, hydraulic oil temp, engine diagnostics

Length: 13' 5Width: 8' 6 transport10' hopper wings downHeight: 8'Total Weight (with screed): 17,720 lbs

Kubota turbocharged dieselTier 4 Final - 74 HP (55.4 kW) @ 2,200 rpm

Fuel: 19 gallonsHydraulic: 67 gallonsWashdown tank: 7 gallonsPaving WidthsVariable up to 15'

Product Specifications

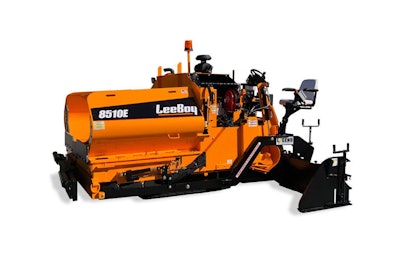

LeeBoy 8510E Asphalt Paver
The following specifications are based on the 8510E Asphalt Paver manufactured by LeeBoy. Because of continuous equipment research and development, we reserve the right to change these specifications. For more information, questions or assistance preparing specifications, please contact your local LeeBoy Dealer.

1. Dimensions:
a. Length: 13' 5b. Width: 8' 6 transport10' hopper wings down c. Height: 8' d. Total Weight (with screed): 17,720 lbs.

2. Engine:
a. Kubota turbocharged dieselb. Tier 4 Final - 74 HP (55.4 kW) @ 2,200 rpm

3. Capacities:
a. Fuel: 19 gallonsb. Hydraulic: 19 gallonsc. Washdown tank: 7 gallons

4. Hopper:
a. Hopper size: 7.5 tonb. Hopper height: 23c. Hopper wings: Heavy-duty.375 with large radius corners

5. Paving Widths:
a. Variable up to 15'

6. Paving Depths:
a. Electrically operated tow point control with toggle switches allow operation of grade control from the main control boxb. Includes manual flights screws positioned on the screedc. Depth: 0 to 6

7. Available Screeds:
a. Legend Electric Screed: Variable up to 15', weight 2,600 lbsView detailed Screed specificationsb. Legend HD Screed: Variable up to 15', weight 3,075 lbsView detailed Screed specifications

8. Under Auger Material Cut Off:
a. Two independent hydraulically operated 4' wide gates located under the augers and constructed of .375 A-36 plate steel

9. Material Augers:
a. Two independent automatic or manual operated hydraulic casted segmented augers constructed with .625 AR 4140 HT (heat-treated) steel with replaceable flightsb. Augers are 12 diameterc. Controlled automatically with sonic units (non-contacting)d. Replaceable auger backe. Heavy-duty auger motors

10. Conveyors
a. Dual 36 feed conveyorsb. Each conveyor is independent with automatic cut-offsc. Conveyor is hydraulically raiseable to allow for cleaning and service

11. Operator's Platform (Optional Low Deck):
a. Two seats mounted on the screedb. Can be removed for standing

12. Operator's Platform (Optional High Deck):
a. Full machine width platform with both right and left hand seats mounted on tractorb. 4' 6 above groundc. Includes a lockable cover for the instrument panel

13. Operator's Controls:
a. Includes dual electronic steeringb. All functions can be controlled from left sidec. Right side levers include screed raise/float, left and right cutoffs, hopper wings, and right screed extensiond. Color graphic control screen with digital readouts. Review and monitor system vitals including: oil pressure, hour meter, fuel gauge, volt meter, water temp, tachometer, hydraulic oil temp, engine diagnostics

14. Steering:
a. Dual electronic steering controlsb. It can be controlled from a high deck position or lowered to control at the screedc. Electronically controlled pumps operate the forward/reverse motion from dual joysticks

15. Washdown System:
a. Electric HD pump with two 25' x .375 diameter hose reels and spray nozzlesb. Built in pressure sensor and shutoffc. Citrus tank sight gauge

16. Hydraulic System:
a. Variable volume hydraulic pumps for each driveb. A constant volume tandem pump for charge pressure and conveyor function and another constant volume pump for generator and auger functionsc. Hydraulic oil: all weather, all temperature

17. Push Rollers:
a. Two 3 diameter rollers with sealed bearings mounted on swivel frameb. Vertically adjustable push rollers, 7 of height adjustmentc. Adjustable height push rollers with self-cleaning scrapers

18. Track Drive System:
a. Hydrostatically powered, self-cleaning crawler type tracks consisting of drive sprocket, five rollers and hydraulically tensioned front idlerb. Tracks are torque hub driven with two-speed motors, hi/low speed is selected by a toggle switch in the control boxc. Fail-safe brakesd. Track size: 14 wide x 77 long poly 5 rollersORRubber Track Option: 15.75 wide x 77 long rubber 5 rollerse. Paving speed: 0 to 135' per minute (1.5 mph)f. Travel speed: 0 to 290' per minute (3.2 mph)

19. Additional Standard Equipment:
a. Back-up alarmb. LED beacon lightc. LED work light packaged. Vandalism protection covers and removable steering boxese. Hornf. Spray down system with 2 hose reelsg. Citrus tankh. 2 seatsi. Poly track (standard track)

20. Optional Equipment:
a. Rubber track continuous, in lieu of polyb. Steel track, in lieu of polyc. High deck configurationd. Steering wheel drive controls, in lieu of joystickse. Manual drive, steering controls, in lieu of joysticksf. Truck hitchg. Truck hitch valvingh. Wiring only, grade controls (Topcon), includes A/M modulesi. Sonic grade control, one side (Topcon)j. Dual grade control (Topcon)k. Dual grade and slope (Topcon)

21. Training, Support and Company
a. Training and support manualsb. Optional on-site operator training by Dealerc. Two-year, unlimited hours warranty against any manufacturer defectsd. Extended warranty availablee. 50+ years manufacturing experiencef. ISO 9001 Certifiedg. Manufactured in the USA
