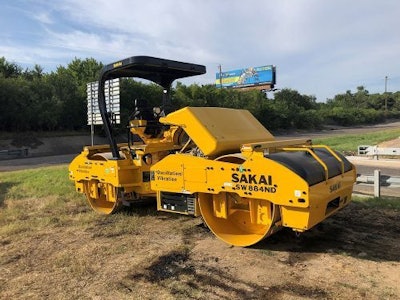

SW884ND

55ba0919

High frequency vibratory asphalt rollers are literally the fastest rollers available, featuring a high frequency of over 4,000 vpm. Designed to beat the tender zone on superpave and other perpetual pavement mixes.

Frequency and amplitude modes can be switched from the seat

Cross-mounted drive and vibration motors help maintain even weight distribution

Counter rotation of eccentric weights in the drums cancel horizontal force

Timer, auto or constant operated waterspray system

Osc achieves density on no-vibe jobs where structural integrity is of concern.

Operator Comfort

Best Compaction Quality and E ciency

Multi-position operator station (MPOS) (5 positions)

180° easy rotating operator console

Excellent drum edge visibility from the operatorseat

High Safety Standard

Sakai proprietary emergency brake pedal which kills the engine and stops the machine instantly.

3 inch retractable seat belt

39 inches of visibility to the front and rear from the operators seat

SAHR (spring applied - hydraulic released) brake

Easy Maintenance

removable brass nozzles for ease of maintenance with excellent draining winterization

Easy ground level access to all check and maintenance points Sprinkler system with plastic water tanks, triple- ltration,

Long life drum isolators

Gear drive Osc/Vibe system (no belts)

Fill out the form below to request more information about SW884ND

TW504

All-drum drive, articulated steering, compact size double drum type (SW) and combination type (TW) vibrating roller.

TW354

Small to medium tonnage jobs. Great for turns - rear tires will not damage curb.

SW994ND

Best Compaction Quality and Efficiency Sakai's new ECO Compaction Mode (ECM) reduces fuel consumption up to 10%.

SW994

High frequency vibratory asphalt rollers are literally the fastest rollers available, featuring a high frequency of over 4,000 vpm.

SW884

High frequency vibratory asphalt rollers are literally the fastest rollers available, featuring a high frequency of over 4,000 vpm.

SW774ND

High frequency vibratory asphalt rollers are literally the fastest rollers available, featuring a high frequency of over 4,000 vpm.

SW774

High frequency vibratory asphalt rollers are literally the fastest rollers available, featuring a high frequency of over 4,000 vpm.

SW770ND

SW770ND standard model features 4,000vpm high frequency vibration by which can efficiently to achieve the density faster and create smoother hot mix asphalt (HMA) mat.

SW770HF

SW770 Sereis Feature Sakai patented compaction technologies SW770HF, standard model features 4,000vpm high frequency vibration by which can efficiently to achieve the density faster and create smoother hot mix asphalt (HMA) mat.

SW654ND

SW654ND OPTIONS ROPS Strobe Halogen work lights kit LED work lights kit Extended warranty Cocoa mat kit Temperature sensor BROCHURE Categories: 600 Series, Asphalt RollersDescription Features & Benefits: Both drums capable of oscillation or vibration Several amplitude or oscillation and frequency setting combinations per drum All vibration controls at instrument panel Chamfered drum edges Excellent drum edge visibility Heavy duty center hitch design Superior shock isolation systems Independent drum vibration Great side and curb clearance Multi-filtered spray system Dual drum hydrostatic drive ROPS and seat belt Front and rear lights Braking lights Turn signals Mirrors Sliding and adjustable seat Specifications DRUM Size (w x d) 58 X 42 ins | 1480 X 1070 mm OPERATING Weight 16,250 lbs | 7,370 kg VIBRATION Frequency Vibe: 2,940 vpm | 49 Hz Osc: 2,940 vpm | 49 Hz Centrifugal Force Vibe: 15,285 lbs | 68 kN Osc: 27,875 lbs | 124 kN Nominal Amplitude Vibe: .020?

SW654

SW654 OPTIONS ROPS Strobe Halogen work lights kit LED work lights kit Extended warranty Cocoa mat kit Temperature sensor BROCHURE Categories: 600 Series, Asphalt RollersDescription Features & Benefits: All vibration controls at instrument panel Chamfered drum edges Excellent drum edge visibility Heavy duty center hitch design Superior shock isolation systems Independent drum vibration Great side and curb clearance Multi-filtered spray system Dual drum hydrostatic drive ROPS and seat belt Front and rear lights Braking lights Turn signals Mirrors Sliding and adjustable seat Specifications DRUM Size (w x d) 58 X 42 ins | 1480 X 1070 mm OPERATING Weight 15,585 lbs | 7,070 kg VIBRATION Frequency Vibe: 3,000 vpm | 50 Hz Osc: 4,000 vpm | 66.7 Hz Centrifugal Force Vibe: 13,940 lbs | 62 kN Osc: 15,510 lbs | 69 kN Nominal Amplitude Vibe: .011?

SW504W

SW504 OPTIONS Padlock Drum Lights Floor Matt Antifreeze tank LED Working Light BROCHURE Categories: 500 Series, Asphalt RollersDescription Features & Benefits: 3,300 VPM Counter-rotating eccentric weights All vibration controls at instrument panel Chamfered drum edges Excellent drum edge visibility Heavy-duty center hitch design Durable rubber isolator system for vibratory drums Independent drum vibration Great side and curb clearance Triple-filtered spray system Dual drum hydrostatic drive ROPS and seat belt standard Braking lights Turn signals Mirrors Specifications - SW504 DRUM Size (w x d) 51?
