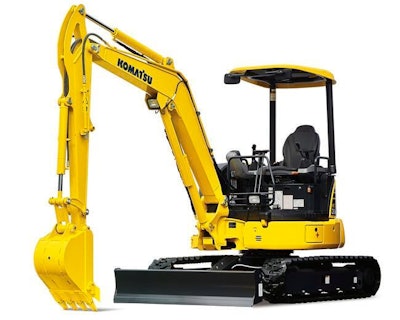

Small excavator PC30MR-5
Horsepower 24.4 HP @ 2,200 rpm Operating weight 6,505 - 6,836 lbs. Bucket capacity 0.07 - 0.21 yd³Engine Model Komatsu 3D88E-7* Type Water-cooled, direct injection Number of cylinders 3 Bore 3.46 in Stroke 3.54 in Piston displacement 100.2 in³ Horsepower: SAE J1995 - Gross 24.4 HP ISO 9249 / SAE J1349 - Net 24.4 HP Rated rpm 2,200 Fan drive method for radiator cooling Mechanical *EPA Tier 4 Final emissions certified

Hydraulics
Number of selectable working modes 2

Main pumps:
Pumps for Boom, arm, bucket, and travel circuits Type Variable displacement piston x 2 Maximum flow 18.3 gpm Pumps for Swing and blade Type Gear x 2 Swing pump maximum flow 4.9 gpm Swing pressure maximum 2,915 psi Blade pump maximum flow 2.61 gpm Blade pressure maximum 3,118 psi Max auxiliary flow rate at 20.5 MPa / 2,973 psi 13.2 gpm Hydraulic valve 8 spool Operating method Hydraulic assist

Travel motor:
Type Variable displacement piston x 2 (with counterbalance valve and travel shaft brake)

Swing motor:
Type Fixed displacement piston type x 1 (with brake valve and swing shaft brake)

Hydraulic cylinders:
(number of cylinders) bore x stroke x rod diameter Boom (1) 3.14 x 21.6 x 1.77 in Arm (1) 2.9 x 23.4 x 1.77 in Bucket (1) 2.55 x 19.29 x 1.57 in Boom swing (1) 3.14 x 19.6 x 1.57 in Blade (1) 3.34 x 5.11 x 1.77 in Drives and brakes Steering control Two levers with pedals Drive method Hydrostatic Gradeability 30° Maximum travel speed (rubber): (Auto-shift) High 2.85 mph Low 1.61 mph Service brake Hydraulic lock Parking brake Mechanical disc Maximum drawbar pull 7,495 lbf. Undercarriage Center frame X-frame Track frame Box-section Track type Sealed Track adjuster Greased gun Number of carrier rollers (each side) 1 Number of track rollers (each side) 4 Coolant and lubricant capacity (refilling) Engine 1.77 US gal Hydraulic system 5.3 US gal Cooling system 0.87 US gal Fuel tank 10.8 US gal Final drive (each side) 0.15 US gal Operating weight (approximate) With ROPS Canopy, Rubber Shoe Operating Weight 6,505 lbs. Ground Pressure 3.87 psi With ROPS Cab, Rubber Shoe Operating Weight 6,836 lbs. Ground Pressure 4.06 psi Blade Width x height 5 ft. 1 in x 1 ft. 2 in

ENGINE
Air cleaner, double element with auto dust evacuator Cooling fan, suction type

ELECTRICAL SYSTEM
Alternator, 12 V/55 A Auto-decelerator Battery, 1 x 12 V/58 Ah Front travel light Starting motor 12 V/1.7 kW Working light on boom

HYDRAULIC SYSTEM
Auxiliary hydraulics with one-way/two-way flow selector valve Foot control for auxiliary hydraulics ISO/SAE pattern change valve

GUARDS AND COVERS
Fan guard Thermal guard

UNDERCARRIAGE
Shoe, 12 rubber shoe

OPERATOR ENVIRONMENT
12 V x 1 power supply Automatic two-speed travel control High resolution 3.5 LCD color monitor Lock lever auto lock function Rear view mirrors (RH, LH) Retractable seat belt, 3 Suspension seat Travel alarm Two-post ROPS (ISO 3471) canopy WORK EQUIPMENT Arms - 48.8 arm assembly with piping Backfill blade Booms - 90 boom assembly with piping

OTHER EQUIPMENT
Auto idle shutdown KOMTRAX Quick release buttery terminal (-) Swing holding brake Counterweight - 518 lb

UNDERCARRIAGE
Road Liner track, 12
OPERATOR ENVIRONMENT
Cab with A/C, radio ready, auxiliary input (3.5 mm jack) read Proportional joysticks

WORK EQUIPMENT
Buckets - 12 HD bucket - 18 HD bucket - 24 HD bucket Hydraulic thumb Mechanical quick coupler
