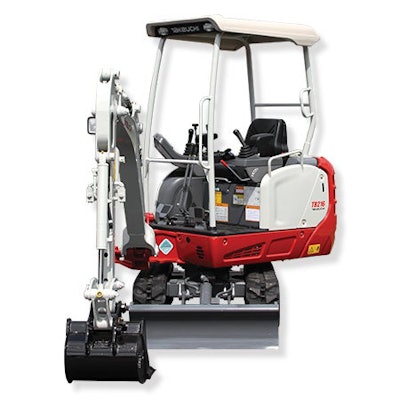

TB216
Compact Excavator
TB216 provides the operator with a nice blend of power and functionality. It is completely redesigned for greater operator comfort, performance, and serviceability.TB216 Operator Station
Operator Focused
Pilot controls are low effort and precise. ISO/SAE pattern change valve allows you to choose your preferred operational controls. Suspension seat reduces operator fatigue and features fore/aft, tilt, and weight adjustments. Multifunction, LED monitor provides the operator with machine vitals.
TB216 Service Hoods Open
Ease of Maintenance
The overhead opening engine hood and multiple access panels provide excellent access to daily maintenance and inspection points.
TB216 Operator Station
Peace of Mind
The safe start system requires the safety lockout lever be in the raised position in order to start the excavator ensuring hydraulic
TB216 Operator Station
Peace of Mind
The safe start system requires the safety lockout lever be in the raised position in order to start the excavator ensuring hydraulic functions are inactive at start-up.
TB216 Working
Compact Design
A retractable undercarriage and compact dimensions allow you to access job sites with limited access.
TB216 Static Photo
Function and Efficienc
y The variable displacement axial piston pump delivers smooth, harmonized control of the work equipment with no reduction in speed.
The standard long arm with integrated thumb mount provides you with a wider working range, dig depth, and simplifies thumb installation.
Load sensing, two speed travel down shifts from low torque/high speed mode to high torque/low speed travel automatically when turning, pushing dirt, or traveling up an incline. Cushioned cylinders improve longevity by reducing shock and they reduce felt recoil to the operator for greater comfort.
TB216 Undercarriage
Increased Protection
Top mounted boom cylinder and hydraulic lines routed through the boom and arm ensures exceptional protection from job site hazards.
All steel construction ensures body integrity through greater strength and rigidity and protects key components from damage.
Heavy duty counterweight protects vital engine and hydraulic components from damage. Triple flange track rollers improve track life by providing greater support, and they feature multiple contact points that reduce the risk of de-tracking.
TB216 Specs
OPERATING PERFORMANCE
Operating Weight 3,900 lb (1,770 kg) Max. Bucket Breakout Force 4,250 lb (1,928 kg) Max. Arm Digging Force 1,843 lb (836 kg) Arm Length 3 ft 8.5 in (1,130 mm) Slew Speed 9.2 rpm Traction Force 4,361 lb (1,978 kg) Ground Pressure 4.3 psi 29.4 kPa Travel Speed - Low 1.4 mph (2.2 km / hr) Travel Speed - High 2.6 mph (4.2 km / hr)
HYDRAULIC SYSTEM
Total Hydraulic Flow 13.4 gpm (50.9 L / min) Auxiliary Hydraulic Flow 8.9 gpm (33.6 L / min) Hydraulic System Pressure 3,046 psi (21.0 Mpa)
ENGINE
Model / Make Yanmar / 3TNV74 Displacement 60.2 cu in (.98 L) Horsepower @ 2,400 rpm 15 hp (11.2 kW) Max. Torque @ 1,800 rpm 38.2 ft-lb (51.8 Nm)
FLUID CAPACITIES
Engine Lubrication 4.5 qt (4.3 L) Cooling System 4.0 qt (3.8 L) Fuel Tank Capacity 5.8 gal (22.0 L) Hydraulic Reservoir Capacity 4.2 gal (16.0 L) Hydraulic System Capacity 6.5 gal (24.5 L)
TB216 Dimensions
MACHINE DIMENSIONS
Maximum Reach 13 ft 5.0 in (4,090 mm) Maximum Reach at Ground Level 13 ft 2.9in (4,035 mm) Maximum Digging Depth 7 ft 10.0 in (2,390 mm) Maximum Vertical Digging Depth 6 ft 9.1 in (2,060 mm) Maximum Dig Height 12 ft 3.2 in (3,740 mm) Maximum Dumping Height 8 ft 10.5 in (2,705 mm) Front Swing Radius 4 ft 10.3 in (1,480 mm) Front Swing Radius with Boom Offset 3 ft 9.4 in (1,155 mm) Tail Swing (Slew) Radius 3 ft 6.3 in (1,075 mm) Transport Length 12 ft 8.3 in (3,870 mm) Transport Height 7 ft 4.8 in (2,255 mm) Ground Clearance 8.1 in (205 mm) Undercarriage Length 4 ft 11.9 in (1,520 mm) Track Width (Rubber) 9.0 in (230 mm) Undercarriage Width - Track Retracted 38.6 in (980 mm) Undercarriage Width - Track Extended 51.2 in (1,300 mm)
TB216 Features
ENGINE
EPA Final Tier 4 Emission Compliant Engine Preheat Dual Element Air Filters Automatic Fuel Bleed System
ELECTRICAL
Multi-Informational Display Visual Indicator for Engine Preheat, High Speed, Water Temp and Fuel Gauge Function Keys Transition Between Hour / Trip Meter, Time and Alarm, and Contrast Adjustment Hour Meter Travel Alarm
UNDERCARRIAGE AND FRAME
Triple Flanged Track Rollers Hydraulically Retractable Track Frame Automatic Load Sensing 2 Speed Travel Adjustable Width Backfill Blade Cast Iron Wrap Around Protective Counterweight 9 Rubber Track
OPERATOR'S STATION
ROPS / TOPS / FOPS Four Post Canopy Pattern Change Valve (ISO or SAE) Suspension Seat with Fore and Aft Adjustments Auxiliary Hydraulics Controlled with Foot Pedal 2 Retractable Seat Belt 3 Non-retractable Seat Belt (optional)
HYDRAULIC & WORKING EQUIPMENT
Variable Displacement Piston Pumps Cushioned Boom and Swing Cylinders Pilot Operated Joystick Controls Hydraulic Oil Cooler Steel Hydraulic Tank with Fluid Level Sight Gauge Primary Auxiliary Circuit Plumbed to Arm with 1-Way and 2-Way Operation Top Mount Boom Cylinder Hydraulic Hoses Protected Inside of Boom and Arm Long Arm with Integrated Thumb Mount Dual Pin Position Bucket (optional) Mechanical Bucket Quick Coupler (optional) Main Pin Hydraulic Thumb (optional)
