Performance
The TB216H comes standard with both an electric motor and diesel engine allowing operators to switch between working modes.
Durability
A well protected steel cover and bracing protects the electronic motor and other vital components.
Operator Comfort
The hydraulic pilot controls are precise, responsive and low effort which is excellent for performance and comfort.
Serviceability
The swing out motor opens to improve access to the diesel engine and electric motor.
Takeuchi Four Pillars Compare Models Request Information TB216H Compact Excavator The compact size and dual power capabilities of the Takeuchi TB216H allows it to work in a wide range of applications that may have limited accessibility, noise and clean air requirements. It is ideal for plumbing, landscaping, utility installation, interior demolition, and rental applications. Performance is identical between the diesel engine and electric motor, and the controls are the same regardless of operating mode.
Download Brochure Walkaround Video Machine Specs andTB216H Working in tunnel Compact Design A retractable undercarriage and compact dimensions allow you to access job sites with limited access.

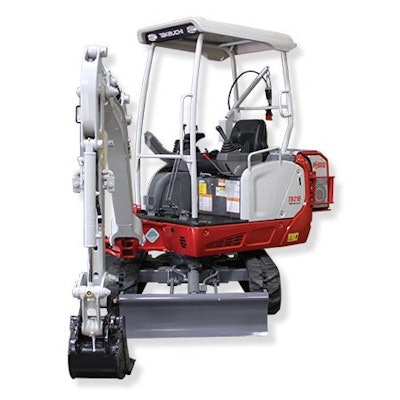

TB216H Static Photo
Function and Efficiency
Electric motor enables low noise operation and allows you to work on job sites with zero emissions requirements, such as, indoor demolition, food processing facilities, hospitals, and schools.
Independent pump groups of equal displacement ensure that there is no loss in performance regardless of operating mode (diesel/electric).
All operational controls such as key switch, throttle, joysticks, blade, and travel levers are the same regardless of operating mode (diesel/electric).
The standard long arm with integrated thumb mount provides you with a wider working range, dig depth, and simplifies thumb installation.
Load sensing, two speed travel down shifts from low torque/high speed mode to high torque/low speed travel automatically when turning, pushing dirt, or traveling up an incline. Cushioned cylinders improve longevity by reducing shock and they reduce felt recoil to the operator for greater comfort
TB216H Rear Protection
Increased Protection
Top mounted boom cylinder and hydraulic lines routed through the boom and arm ensures exceptional protection from job site hazards.
All steel construction ensures body integrity through greater strength and rigidity and protects key components from damage.
Heavy duty counterweight protects vital engine and hydraulic components from damage. Triple flange track rollers improve track life by providing greater support, and they feature multiple contact points that reduce the risk of de-tracking.
TB216H Operator Station
Operator Focused
Pilot controls are low effort and precise. ISO/SAE pattern change valve allows you to choose your preferred operational controls. Suspension seat reduces operator fatigue and features fore/aft, tilt, and weight adjustments. Multifunction, LED monitor provides the operator with machine vitals.
Features and Benefits
TB216H Rear Service Hoods Open
Ease of Maintenance
The overhead opening engine hood and multiple access panels provide excellent access to daily maintenance and inspection points.
Right Shot of the TB216H Static
Peace of Mind
The safe start system requires the safety lockout lever be in the raised position in order to start the excavator ensuring hydraulic functions are inactive at start-up.
TB216H Specs
OPERATING PERFORMANCE Operating Weight 4,277 lb (1,940 kg) Max. Bucket Breakout Force 4,250 lb (1,928 kg) Max. Arm Digging Force 1,843 lb (836 kg) Arm Length 3 ft 8.5 in (1,130 mm) Slew Speed 9.2 rpm Traction Force 4,361 lb (1,978 kg) Ground Pressure 4.3 psi Travel Speed - Low 1.4 mph (2.2 km / hr) Travel Speed - High 2.6 mph (4.2 km / hr)
HYDRAULIC SYSTEM
Total Hydraulic Flow 13.4 gpm (50.9 L / min) Auxiliary Hydraulic Flow 8.9 gpm (33.6 L / min) Hydraulic System Pressure 3,046 psi (21.0 Mpa)
ENGINE
Model / Make Yanmar / 3TNV74 Displacement 60.0 cu in (.99 L) Max. Torque @ 1,800 rpm 38.2 ft-lb (51.8 Nm) Output Diesel Engine 14.9 hp 11.1 kW / 2,400 rpm
ELECTRIC MOTOR
Output Electric Motor 14.2 hp 10.6 kW / 2400 rpm Electrical Connection 400 - 480 V/47 - 63 Hz / Fused w/ min. 32A
FLUID CAPACITIES
Engine Lubrication 4.5 qt (4.3 L) Cooling System 4.0 qt (3.8 L) Fuel Tank Capacity 5.8 gal (22.0 L) Hydraulic Reservoir Capacity 4.2 gal (16.0 L) Hydraulic System Capacity 6.5 gal (24.5 L)
TB216H Dimensions
MACHINE DIMENSIONS
Maximum Reach 13 ft 5.0 in (4,090 mm) Maximum Reach at Ground Level 13 ft 2.9in (4,035 mm) Maximum Digging Depth 7 ft 10.0 in (2,390 mm) Maximum Vertical Digging Depth 6 ft 9.1 in (2,060 mm) Maximum Dig Height 12 ft 3.2 in (3,740 mm) Maximum Dumping Height 8 ft 10.5 in (2,705 mm) Front Swing Radius 4 ft 10.3 in (1,480 mm) Front Swing Radius with Boom Offset 3 ft 9.4 in (1,155 mm) Tail Swing (Slew) Radius 4 ft 4.6 in (1,335 mm) Transport Length 13 ft 6.8 in (4,135 mm) Transport Height 7 ft 4.8 in (2,255 mm) Ground Clearance 8.1 in (205 mm) Undercarriage Length 4 ft 11.9 in (1,520 mm) Track Width (Rubber) 9.0 in (230 mm) Undercarriage Width - Track Retracted 38.6 in (980 mm) Undercarriage Width - Track Extended 51.2 in (1,300 mm)
TB216H Features
ENGINE
EPA Final Tier 4 Emission Compliant Engine Preheat Dual Element Air Filters Automatic Fuel Bleed System
ELECTRIC MOTOR
Electric Motor with High Voltage Connection Provides 100% Emission Free Operation and Full Functionality
ELECTRICAL
Multi-Informational Display Visual Indicator for Engine Preheat, High Speed, Water Temp and Fuel Gauge Function Keys Transition Between Hour / Trip Meter, Time and Alarm, and Contrast Adjustment Hour Meter Travel Alarm
UNDERCARRIAGE AND FRAME
Triple Flanged Track Rollers Hydraulically Retractable Track Frame Automatic Load Sensing 2 Speed Travel Adjustable Width Backfill Blade Cast Iron Wrap Around Protective Counterweight 9 Rubber Track
OPERATOR'S STATION
ROPS / TOPS / FOPS Four Post Canopy Suspension Seat with Fore and Aft Adjustments Auxiliary Hydraulics Controlled with Foot Pedal 2 Retractable Seat Belt 3 Non-retractable Seat Belt (optional) HYDRAULIC & WORKING EQUIPMENT Variable Displacement Piston Pumps Cushioned Boom and Swing Cylinders Pattern Change Valve (ISO or SAE) Pilot Operated Joystick Controls Hydraulic Oil Cooler Steel Hydraulic Tank with Fluid Level Sight Gauge Primary Auxiliary Circuit Plumbed to Arm with 1-Way and 2-Way Operation Top Mount Boom Cylinder Hydraulic Hoses Protected Inside of Boom and Arm Long Arm with Integrated Thumb Mount Dual Pin Position Bucket (optional) Mechanical Bucket Quick Coupler (optional) Main Pin Hydraulic Thumb (optional)
