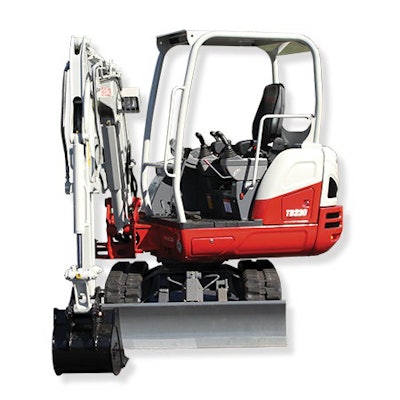

TB230
Compact Excavator
With its narrow width the TB230 is able to work on job sites with limited accessibility, and the conventional tail swing design provides excellent stability and greater operator space. The control valve and hydraulic components are now conveniently located under the right side cover for improved accessibility.
ENGINE
EPA Final Tier 4 Emission Compliant Automatic Fuel Bleed System Dual Element Air Filter Automatic Idle
ELECTRICAL
Multi-Informational Display Sealed Rocker Switches 12 volt System with 40 amp Alternator Halogen Work Lights: Two Forward Facing Engine Preheat Hour Meter Travel Alarm Horn
UNDERCARRIAGE AND FRAME
Triple Flanged Track Rollers Automatic Load Sensing 2 Speed Travel Sloped Frame with Open Centers Heavy Duty Dozer Blade with Float Large Wrap Around Counterweight 11.8 Rubber Tracks Power Angle Blade with Float and, Bolt-on Cutting Edge (optional)
OPERATOR'S STATION
ROPS / TOPS / OPG Four Post Canopy Deluxe High Back Suspension Seat Adjustable Arm Rests 2 Retractable Seat Belt 3 Retractable Seat Belt (optional)
HYDRAULIC & WORKING EQUIPMENT
Variable Displacement, Open Center Hydraulics Cushioned Boom and Swing Cylinders Hydraulic Pilot Controls Proportional Auxiliary Controls with Detent Auxiliary Flow Adjustable from Operator's Seat Hydraulic Reservoir with Fluid Level Sight Gauge Primary Auxiliary Hydraulic Circuit Plumbed to Arm Multiple Attachment Presets Flow Selector Valve, Primary Auxiliary Circuit Pattern Change Valve (ISO or SAE) Pilot Accumulator Long Arm with Integrated Thumb Mount Main Boom Cylinder Guard Dual Pin Position Bucket (optional) Mechanical Bucket Quick Coupler (optional) Main Pin Hydraulic Thumb (optional)
Compact Design
Enables you to work in a wide range of applications and the conventional tail swing provides greater stability and larger operator's station.
Operator Focused
Multifunction, LED monitor provides the operator with machine vitals, flow adjustments, and attachment presets.
Electronic dial type throttle control allows the operator to quickly adjust engine speed, and the automatic engine idle feature will reduce engine speed to low idle automatically should the machine idle more than several seconds.
Function and Efficiency
The lower horsepower rating of the TB230 does not require the use of a DOC/DPF exhaust aftertreatment system.
The variable displacement axial piston pump delivers smooth, harmonized control of the work equipment with no reduction in speed.
The standard long arm with integrated thumb mount provides you with a wider working range, dig depth, and simplifies thumb installation.
Load sensing, two speed travel down shifts from low torque/high speed mode to high torque/low speed travel automatically when turning, pushing dirt, or traveling up an incline. Large slew bearing provides greater longevity and stability over the life of the machine. Cushioned cylinders improve longevity by reducing shock and they reduce felt recoil to the operator for greater comfort.
Increased Protection
All steel construction ensures body integrity through greater strength and rigidity and protects key components from damage.
Heavy duty counterweight protects vital engine and hydraulic components from damage. Triple flange track rollers improve track life by providing greater support, and they feature multiple contact points that reduce the risk of de-tracking.
