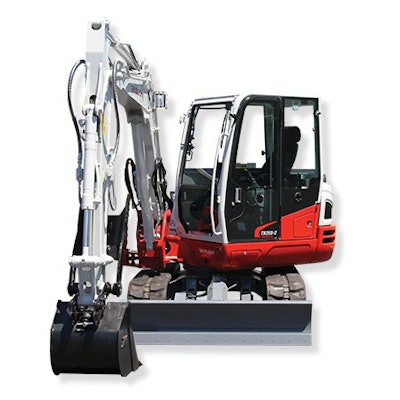

TB250-2
Compact Excavator
The TB250-2 is Takeuchi's newest excavator in the 5 ton weight class filling the space between the current TB240 and TB260 models. It has an operating weight of 10,957 lbs. (canopy) to 11,288 lbs. (cab), a dig depth of 12' 4.8 and max reach of over 20'. Its 39 hp engine is Tier 4 final meeting all current EPA emissions regulations and provides outstanding access to all daily service points. The TB250-2 will come equipped with a primary auxiliary circuit capable of 24.2 gpm of flow making it an outstanding platform for many different hydraulic attachments.
Function and Efficiency
The variable displacement axial piston pump delivers smooth, harmonized control of the work equipment with no reduction in speed.
The standard long arm with integrated thumb mount provides you with a wider working range, dig depth, and simplifies thumb installation.
Load sensing, two speed travel down shifts from low torque/high speed mode to high torque/low speed travel automatically when turning, pushing dirt, or traveling up an incline. Large slew bearing provides greater longevity and stability over the life of the machine. Cushioned cylinders improve longevity by reducing shock and they reduce felt recoil to the operator for greater comfort.
Ease of Maintenance
Rear hood and right side cover open high overhead providing exceptional access to inspection and maintenance points.
TB250-2 Features
ENGINE
EPA Final Tier 4 Emission Compliant DOC+DPF Exhaust After Treatment Automatic Fuel Bleed System Dual Element Air Filter Automatic Idle Working Modes: Standard, ECO and High Altitude Engine Preheat Starting Aid High Capacity Radiator and Hydraulic Oil Cooler High Capacity Fuel Filters
ELECTRICAL
Multi-Informational Display (canopy) 5.7 Color Multi-Informational Display (cab) Sealed Rocker Switches 12 volt System with 55 amp Alternator LED: Two Forward Facing and One on the Right and Left Sides Travel Alarm Horn
UNDERCARRIAGE AND FRAME
Triple Flanged Track Rollers 2-Speed Travel with Automatic Shift High Torque Planetary Final Drive Heavy Duty Dozer Blade with Float Large Wrap Around Counterweight 15.7 Rubber Tracks 15.7 Steel Tracks (optional) Power Angle Blade with Float and Bolt-on Cutting Edge (optional)
OPERATOR'S STATION
ROPS / OPG Level 1 Four Post Canopy Deluxe High Back Suspension Seat Adjustable Arm Rests 12v Power Outlet 2 Retractable Seat Belt 3 Retractable Seat Belt (optional) Cab with Air Conditioner, Heat, Defrost, Windshield Wiper and Washer, Skylight with Sunshade, AM / FM / MP3 / Bluetooth Radio (optional)
HYDRAULIC & WORKING EQUIPMENT
Variable Displacement, Open Center Hydraulics Cushioned Boom, Arm, and Swing Cylinders Hydraulic Pilot Controls Proportional Auxiliary Controls with Detent Adjustable Auxiliary Flow Large Hydraulic Reservoir with Fluid Level Sight Gauge Primary Auxiliary Hydraulic Circuit Plumbed to Arm Multiple Attachment Presets Flow Selector Valve, Primary Auxiliary Circuit Pattern Change Valve (ISO or SAE) Boom Holding Valve with Lift Overload Alarm Pilot Accumulator Main Boom Cylinder Guard Long Arm with Integrated Thumb Mount Dual Pin Position Bucket (optional) Mechanical Bucket Quick Coupler (optional) Main Pin Hydraulic Thumb (optional)
