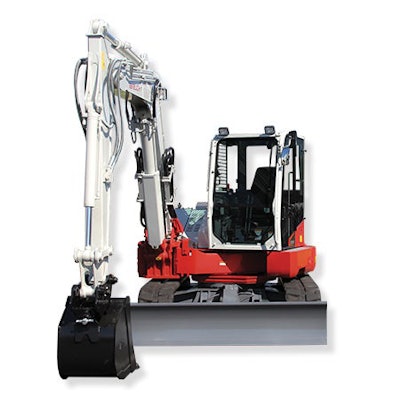

TB280FR
Compact Excavator
The TB280FR features a patented side-to-side (STS) offset boom combined with the tight tail swing for unmatched visibility to the work equipment and enables it to rotate fully with very little overhang. Its low center of gravity and optimized counterweight placement creates an extremely stable platform with lifting capabilities similar to that of a conventional machine.
TB280FR Features
ENGINE
EPA Final Tier 4 Emission Compliant Turbocharged DOC+DPF Exhaust After Treatment High Pressure Common Rail Fuel Injection Automatic Fuel Bleed System Dual Element Air Filter Automatic Idle Working Modes : Power and High Altitude Engine Preheat Starting Aid High Capacity Radiator and Hydraulic Oil Cooler High Capacity Fuel Filters
ELECTRICAL
5.7 Color Multi-Informational Display Sealed Rocker Switches 12 volt System with 80 amp Alternator Halogen Work Lights: Boom and Cab Travel Alarm Horn
UNDERCARRIAGE AND FRAME
Triple Flanged Track Rollers Automatic Load Sensing 2 Speed Travel High Torque Planetary Final Drive Auto Track Tensioning Heavy Duty Dozer Blade with Float Large Wraparound Counterweight 17.7 Rubber Tracks 17.7 Steel Tracks (optional) 17.7 Segmented Rubber Tracks (optional)
OPERATOR'S STATION
Cab with Air Conditioner, Heat Defrost, Windshield Wiper and Washer, Skylight with Sunshade, AM / FM / MP3 Radio, 12v Power Outlet ROPS and OPG Level 1 Deluxe High Back Suspension Seat Adjustable Arm Rests 2 Retractable Seat Belt 3 Retractable Seat Belt (optional)
HYDRAULIC & WORKING EQUIPMENT
Variable Displacement, Open Center Hydraulics Cushioned Boom, Arm, and Swing Cylinders Hydraulic Pilot Controls Proportional Auxiliary Controls with Detent Adjustable Auxiliary Flow Large Hydraulic Reservoir with Fluid Level Sight Gauge Primary and Secondary Auxiliary Hydraulic Circuit Plumbed to Arm Multiple Attachment Presets Flow Selector Valve, Primary Auxiliary Circuit Pilot Accumulator Pattern Change Valve (ISO or SAE) Main Boom Cylinder Guard Boom Holding Valve with Lift Overload Alarm Long Arm Full Rotation Capability and Patented STS Boom Dual Pin Position Bucket (optional) Mechanical Bucket Quick Coupler (optional) Main Pin Hydraulic Thumb (optional)
Operator Focused
Deluxe high back adjustable suspension seat reduces operator fatigue while providing greater visibility to the work equipment and surrounding job site. 5.7 Multifunction, LED color monitor provides the operator with machine vitals, flow adjustments, and attachment presets. Electronic dial type throttle control allows the operator to quickly adjust engine speed, and the automatic engine idle feature will reduce engine speed to low idle automatically should the machine idle more than several seconds.
Peace of Mind
The safe start system requires the safety lockout lever be in the raised position in order to start the excavator ensuring hydraulic functions are inactive at start-up. The boom holding valve and overload alarm are designed to keep the boom from dropping if there is a sudden loss in pressure, and the overload alarm will sound (when ON) if you exceed hydraulic capacity. Available drop-in 1/2 poly carbonate glass or heavy duty 1/2 poly carbonate window guard with steel frame, and steel front guard group provide the added protection you need when using hydraulically driven attachments.
