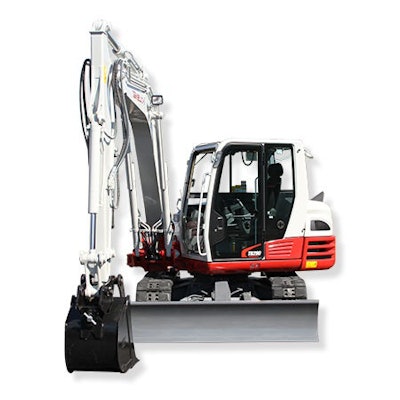

TB290
Compact Excavator
The TB290 has a wide array of features that maximize efficiency and productivity. A closed center, load sensing hydraulic system allows it to have outstanding multi-function capabilities, and multiple attachment presets and ability to adjust auxiliary flow rates from the cab greatly expands the machines versatility. Service and maintenance access is greatly enhanced with an engine hood and side cover that open high overhead for unmatched ground level serviceability.
TB290 Features
ENGINE
EPA Final Tier 4 Emission Compliant Turbocharged DOC+DPF Exhaust After Treatment High Pressure Common Rail Fuel Injection Automatic Fuel Bleed System Dual Element Air Filter Automatic Idle Working Modes: Power and High Altitude Engine Preheat Starting Aid High Capacity Radiator and Hydraulic Oil Cooler High Capacity Fuel Filters
ELECTRICAL
5.7 Color Multi-Informational Display Sealed Rocker Switches 12 volt System with 80 amp Alternator Halogen Work Lights: Boom and Side Cover Travel Alarm Horn
UNDERCARRIAGE AND FRAME
Triple Flanged Track Rollers Automatic Load Sensing 2 Speed Travel High Torque Planetary Final Drive Auto Track Tensioning Heavy Duty Dozer Blade with Float Large Wraparound Counterweight 17.7 Rubber Tracks 17.7 Segmented Rubber Tracks (optional) 21.7 Steel Tracks (optional) Power Angle Blade with Float (optional)
OPERATOR'S STATION
Cab with Automatic Climate Control System, Windshield Wiper and Washer, Skylight with Sunshade, AM / FM / MP3 Radio, 12v Power Outlet ROPS and OPG level 1 Deluxe High Back Suspension Seat Adjustable Arm Rests 2 Retractable Seat Belt 3 Retractable Seat Belt (optional)
HYDRAULIC & WORKING EQUIPMENT
Closed Center, Load Sensing Hydraulics Cushioned Boom, Arm, and Swing Cylinders Load Sensing Piston Pump Hydraulic Pilot Controls Proportional Auxiliary Controls with Detent Adjustable Auxiliary Flow Large Hydraulic Reservoir with Fluid Level Sight Gauge Primary and Secondary Auxiliary Hydraulic Circuit Plumbed to Arm Multiple Attachment Presets Flow Selector Valve, Primary Auxiliary Circuit Pilot Accumulator Pattern Change Valve (ISO or SAE) Dual Boom Cylinders Boom Holding Valve with Lift Overload Alarm Long Arm with Integrated Thumb Mount Dual Pin Position Bucket (optional) Mechanical Bucket Quick Coupler (optional) Main Pin Hydraulic Thumb (optional) Peace of Mind The safe start system requires the safety lockout lever be in the raised position in order to start the excavator ensuring hydraulic functions are inactive at start-up. Using the rear view camera, you are able to see hazards around the rear of the machine via the multifunction monitor. The boom holding valve and overload alarm are designed to keep the boom from dropping if there is a sudden loss in pressure, and the overload alarm will sound (when ON) if you exceed hydraulic capacity. Available drop-in 1/2 poly carbonate glass or heavy duty 1/2 poly carbonate window guard with steel frame, and steel front guard group provide the added protection you need when using hydraulically driven
Operator Focused
Deluxe high back adjustable suspension seat reduces operator fatigue while providing greater visibility to the work equipment and surrounding job site. 5.7 Multifunction, LED color monitor provides the operator with machine vitals, flow adjustments, and attachment presets. Electronic dial type throttle control allows the operator to quickly adjust engine speed, and the automatic engine idle feature will reduce engine speed to low idle automatically should the machine idle more than several seconds. Mid-Size Design Greater horsepower, powerful hydraulics, and larger footprints make these mid-size excavators more capable and better suited for applications requiring greater production and efficiency.
