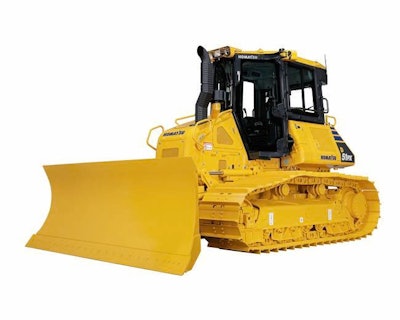

Small dozer
D51PX-24
KEY SPECS
Horsepower 131 HP @ 2,200 rpm
Operating weight 31,438 lbs.
Blade capacity 4.4 yd_
Overview
An all-around dozer that delivers
From golf course construction to highway projects, the D51PX-24 is an all-around crawler dozer built for precise, high-speed grading. The PX model has a high-capacity, high-wear resistant dozer blade.
Lower ground pressure than D51EX
More dirt capacity than the D39
Production increased by up to 15% over prior model
Features and benefits
Parallel Link Undercarriage System (PLUS)
Designed to wear evenly so the machine provides close to 100% usage of undercarriage components, Komatsu PLUS undercarriage lowers undercarriage maintenance costs by up to 40% over a conventional undercarriage. Strengthened rollers and links increase wear life up to two times.
PAT dozer with adjustable pitch
Expand your productivity and gain more versatility in a variety of applications with a power angle tilt (PAT) dozer blade with adjustable blade pitch system.
Exceptional blade visibility
An innovative super-slant nose design provides excellent blade visibility for improved machine control and increased efficiency and productivity.
HST with electronic control
Fully electronic control provides complete automatic shifting and enables smooth control. Equipped with Komatsu-designed HST, this machine allows for Quick-Shift or variable speed selection.
Easy-access maintenance features
A swing-up fan with a gas strut-assisted lift system provides easy access to the radiator, oil cooler and charge air cooler. The hydraulic fan has a reversing fan for cleaning any objects that are restricting air flow.
Palm command control system lever
Designed for your operator's comfort and ease of use, the ergonomic, low-effort palm command control system (PCCS) joystick controls all directional movements, including machine travel speed, as well as counter-rotation.
