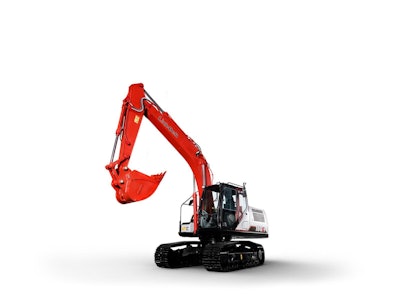

160 X4
SAE Net Horsepower 112 HP (83 kW)
Operating Weight 38,400 lbs (17.4 metric tons)
Grade Control Solutions
Link-Belt Precision Grade enables operators of all skill levels to increase their productivity by up to 50%. No more under or over excavating! Operators see bucket position relative to the desired grade as they work, helping their Link-Belt 160 X4 excavator achieve greater productivity through more precise and accurate machine operations. Minimal grade staking and checking enhances jobsite safety and efficiency.
Choose Link-Belt 2D Machine Guidance (MG) for consistent bucket grade and depth positioning on projects, or Link-Belt 2D Machine Control (MC) for semiautonomous operation, with the operator only controlling the arm.
SPECIFICATIONS UNITS US METRIC
Engine Make Isuzu Engine Model AR-4JJ1X Max Dig Depth 19' 11 ft/in Reach at Ground Level 30' 3 ft/in Arm Force 18,800 lbf Bucket Digging Force 26,500 lbf Bucket Capacity, SAE Heaped .50 - 1.14 yd3 Max Travel Speed 3.4 mph
Standard Warranty
The quality and durability of Link-Belt X4 Excavators is evident in their 5-year/5,000-hour full machine warranty.
Top 10 Reasons to Buy an X4
Thinking of buying a Link-Belt X4 hydraulic excavator? From productivity to our customer-focused dealer network - see the Top 10 Reasons that's the correct decision.
Used Equipment
Looking for a used Link-Belt 160 X4 hydraulic excavator? Get the innovative, high-quality Link-Belt Excavators you know at the price you need - from our trusted Dealer network.
