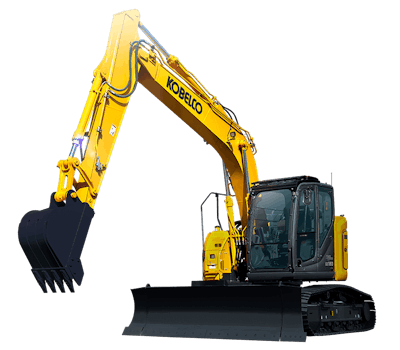

ED160BR-7 Blade Runner
Engine Power - 105 hp (78.6 kW)
Operating Weight - 37,000 lbs (16,800 kg)
The ED160BR-7 Blade Runner is a versatile excavator with a six-way dozer blade that offers power, angle, and tilt capability for pushing material out of the way or quickly refilling a work site. As one of our most fuel-efficient machines, the ED160BR-7 features the exclusive KOBELCO iNDr Cooling System that reduces dust while delivering ultra-quiet operation. Multiple operating modes allow you to dial in the perfect balance of performance and fuel economy, and adjustable presets for the bucket, breaker, nibbler and thumb allow you to change tools quickly and easily.
Overall Length 28' 4 (8,640 mm) Overall Height (to top of boom) 10' 5 (3,180 mm) Overall Width 10' 8 (3,260 mm) Ground Clearance of Rear End 3' 5 (1,030 mm) Ground Clearance 17.9 (455 mm) Tail Swing Radius 4' 11 (1,490 mm) Distance From Center of Swing To Rear End 4' 11 (1,490 mm) Tumbler Distance 9' 2 (2,800 mm) Track Gauge 6' 6 (1,990 mm) Shoe Width 1' 11 (600 mm) Overall Width of Upperstructure 8' 2 (2,480 mm)
Travel Speed 3 mph (4.8 kph) / 1.5 mph (2.4 kph) Drawbar Pulling Force 43,800 lbf (195 kN)
WEIGHT
Operating Weight 37,000 lbs (16,800 kg)
ENGINE
Model Isuzu 4 JJ 1X DRAC -01 Power Output 115 hp (86 kW) 105 hp (78.6 kW) Max. Torque 261 lbf (354 Nm) Displacement 183 in³ (2.999 ltr) Fuel Tank 49.1 gallons (US) (186 ltr)
HYDRAULIC SYSTEM
Pump 2 Variable axial piston + Gear Dozer Blade Blade Height: 31.9 (810 mm) Blade Width: 10' 8 (3,260 mm) Max. Raise Height: 31.1 (790 mm) Dig Depth: 23.6 (600 mm)
Max. Digging Reach 28' 11 (8,810 mm) Max. Digging Reach At Ground Level 28' 3 (8,620 mm) Max. Digging Depth 19' (5,790 mm) Max. Digging Height 31' 11 (9,730 mm) Max. Dumping Clearance 23' 11 (7,300 mm) Max. Vertical Wall Digging Depth 15' 8 (4,770 mm) Min. Swing Radius 8' 3 (2,520 mm) Digging Depth For 8 Feet Flat Bottom 18' 4 (5,600 mm)
Bucket Digging Force 24,800 lbf (110.4 kN) Arm Crowding Force 13,000 lbf (58 kN)
