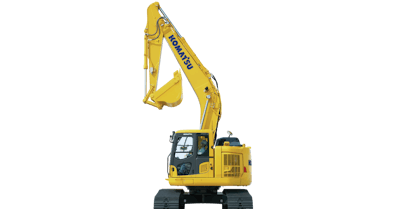

PC238USLC-11
Horsepower 165 HP @ 2,000 rpm
Operating weight 54,230 - 55,660 lbs.
Bucket capacity 0.66 - 1.57 yd³
Performance where space is limited
The power and stability you need in a compact and easy-to-transport package. Designed to excel in underground utility or general construction in urban environments, this short tail swing excavator is at home in tight spaces.

Quick and powerful Impressive fuel efficiency Spacious and comfortable Designed for exceptional stability

Features and benefits
Short implement swing radius
Get greater clearance when space is limited with a higher boom raise angle than our standard excavator that reduces the minimum front implement swing radius.

Short tail swing radius
Get more done in confined areas with the short tail swing radius that allows the machine to work in more spaces than our conventional excavator.

Rounded cab design with sliding door
High maneuverability is achieved through the purpose-built cabs that swings within the same radius as the counterweight. The sliding cab door allows operators to easily enter and exit when space is limited.

Stable platform
The compact counterweights provide exceptional lifting capability and stability providing a comfortable, confident operating experience.

Arm quick return valve
Help improve efficiency with the quick return valve that directs additional oil through a second line directly back to the tank when the arm is extended, helping to reduce back pressure and fuel consumption.

Efficient hydraulic system
For quick response to operator demands, the closed-center loading system (CLSS) helps improve fuel efficiency. Pilot proportional control (PPC) hydraulics and optional proportional joysticks provide exceptional control.

Specifications for PC238USLC-11
Full specifications
Standard equipment
Optional equipment
Close all
US system
Metric
Engine
Model Komatsu SAA6D107E-3* Type Water-cooled, 4-cycle, direct injection Aspiration Komatsu Variable Geometry Turbo air-to-air aftercooled Number of cylinders 6 Bore 4.21 in Stroke 4.88 in Piston displacement 408 in³ Horsepower: SAE J1995 / Gross 165 HP ISO 9249 / SAE J1349 / Net 165 HP Fan at maximum speed / Net 156 HP Rated rpm 2,000 Fan drive method for radiator cooling Mechanical with viscous fan clutch Governor All-speed control, electronic Lubrication system: Method Gear pump, force-lubrication Filter Full-flow Air cleaner Air cleaner, double element and auto dust evacuator *EPA Tier 4 Final emissions certified

Hydraulics
Type: Closed-center system with load sensing valve and pressure compensated valve

Main pump: Type Variable capacity piston type Pumps for Boom, arm, bucket, swing, and travel circuits Maximum flow 125.5 gpm Hydraulic motors: Travel 2 x piston motor with parking brake Swing 1 x axial piston motor with swing holding brake Relief valve setting: Implement circuits 5,400 psi Travel circuits 5,400 psi Swing circuits 4,264 psi Pilot circuit 470 psi Hydraulic cylinders: (Number of cylinders bore x stroke x rod diameter) Boom / 2 5.11 x 54.5 x 3.5 in Arm / 1 5.3 x 58.7 x 3.7 in Bucket / 1 4.5 x 44.1 x 3.2 in Drives and Brakes Steering control Two-lever with pedals Drive method Fully hydrostatic Maximum drawbar pull 45,410 lbs. Maximum travel speed: High 3.4 mph Mid 2.5 mph Low 1.9 mph Gradeability 70%, 35° Service brake Hydraulic lock Parking brake Mechanical disc Swing System Driven by Hydraulic motor Swing reduction Planetary gear Swing circle lubrication Grease-bathed Swing lock Mechanical disc brake Swing speed 11.0 rpm Swing torque 48,124 ft.-lbs. Undercarriage Center frame X-frame leg Track frame Box-section Track type Sealed Track adjuster Hydraulic Number of shoes (each side): 49 Number of carrier rollers (each side): 2 Number of track rollers (each side): 9 Sound Performance Exterior ISO 6395 100 dB(A) Operator ISO 6396 71 dB(A) Coolant & Lubricant Capacity (Refilling) Fuel tank 76.6 US gal Radiator 7.6 US gal Engine 6.1 US gal Final drive, each side 1.4 US gal Swing drive 1.7 US gal Hydraulic tank 33.3 US gal DEF tank 3.4 US gal Operating Weight (Approximate) Operating weight including 18 ft. 8 in one-piece boom, 9 ft. 7 in arm, SAE heaped 1.11 yd3 bucket, rated capacity of lubricants, coolant, full fuel tank, operator, and standard equipment.

Shoes Operating Weight Ground Pressure
Road Liner 24 in 54,230 lbs. 7.41 psi 28 in 54,825 lbs. 6.42 psi 31.5 in 55,440 lbs. 5.68 psi
