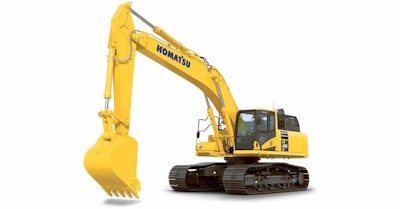

PC490LC-11
Horsepower 359 HP @ 1,900 rpm
Operating weight 105,670 - 110,220 lbs.
Bucket capacity 1.47 - 4.15 yd³
High production, easily transportable
Built for high production jobs, the PC490LC-11 is a large but portable excavator with a heavy-duty reinforced undercarriage for high lift capacity, lateral stability and added durability.

Large high-strength steel castings on the boom, arm and bucket link Closed-center load-sensing hydraulics for precise, fine control Large displacement high-efficiency pumps provide optimal attachment flow Large, spacious, quiet cab featuring standard air suspension seat

Features and benefits
Large displacement high efficiency pump
Large displacement hydraulic implement pumps provide high flow output at lower engine RPM, operation at the most efficient engine speed.

Closed-center load-sensing hydraulic system
Smooth operation, quick cycle times, great multi-function, while lowering fuel consumption from closed-center load-sensing hydraulic system.

Built for strength
Equipment designed for long-term durability with high resistance to bending and torsional stress. Booms and arms are constructed with thick plates of high tensile strength streel and designed with large cross-sectional areas.

Cleaner emissions
A heavy-duty aftertreatment system that combines a Komatsu Diesel Particulate Filter (KDPF) and selective catalytic reduction (SCR). The system injects the correct amount of diesel exhaust fluid at the proper rate, decomposing nitrogen oxide.

Easy access
Engine oil check and filter locations integrated into one side to allow easier maintenance access.

Advanced ergonomic design
Wide spacious cab includes a heated air suspension seat with reclining backrest. Seat height and position are easily adjusted using a pull-up lever. Armrest position easily adjusted with the console.

Information at your fingertips
Updated, large, high-resolution LCD color monitor to ease accurate and smooth work. Key machine information displayed in user-friendly interface, rearview camera and DEF level gauge display added to default main screen.

Rollover protection
A ROPS cab that conforms to ISO 12117-2 comes as standard equipment. It also satisfies requirements for level 1 operator protective guard (OPG) and top guard (ISO 10262).

Multi-operator productivity
An operator identification ID can be set up for each operator and used to manage operation information of individual machines using Komtrax data. Data can analyze operation status by operator and by machine.

Reduce fuel consumption
Auto idle shutdown automatically shuts the engine down after idling for a set period to reduce unnecessary fuel consumption and exhaust emissions. Time before engine is shutdown can be programmed from 5 to 60 minutes.

Designed for durability
Large heavy-duty revolving frame guards and swivel guard help protect vital components from damage and debris build-up.

Ease of maintenance and serviceability
Provide a convenient and more secure work area in front of the engine. A new step provides easier access for filling the AdBlue/DEF tank.

Specifications for PC490LC-11
Full specifications
Standard equipment
Optional equipment
Close all
US system
Metric
Engine
Model Komatsu SAA6D125E-7* Type Water-cooled, 4-cycle, direct injection Aspiration Komatsu Variable Geometry Turbocharger with air-to-air aftercooled EGR Number of cylinders 6 Bore 4.92 in Stroke 5.91 in Piston displacement 674 in³ Horsepower SAE J1995 : Gross 362 HP ISO 9249/SAE J1349 : Net 359 HP Rated rpm 1,900 rpm Governor All-speed control, electronic. Fan drive method for radiator cooling Hydraulic *EPA Tier 4 Final emissions certified

Hydraulics
Type: HydrauMind (Hydraulic Mechanical Intelligence) system, closed-center system with load sensing valve and pressure compensated valves, 6 selectable working modes

Main pump: Pumps for Boom, arm, bucket, swing, and travel circuits Type Variable displacement axial piston type Maximum flow 206 US gpm Hydraulic motors: Travel 2 x axial piston motor with parking brake Swing 1 x axial piston motor with swing holding brake Relief valve setting: Implement circuits 5,400 psi Travel circuit 5,400 psi Swing circuit 4,050 psi Pilot circuit 470 psi Hydraulic cylinders: Number of cylinders Bore x Stroke x Rod Diameter Boom / 2 6.3 x 61.8 x 4.3 in Arm / 1 7.3 x 71.7 x 4.7 in Bucket / 1 6.3 x 50 x 4.3 in Drives and Brakes Steering control Two levers with pedals Drive method Hydrostatic Maximum drawbar pull 73,880 lbs. Gradeability 70% Maximum travel speed: (Auto-Shift): High 3.4 mph Mid 2.6 mph Low 1.9 mph Service brake Hydraulic lock Parking brake Mechanical disc brake

Swing System
Drive method Hydrostatic motor Swing reduction Planetary gear Swing circle lubrication Grease-bathed Service brake Hydraulic lock Holding brake/Swing lock Mechanical disc brake Swing speed 9.0 rpm Swing torque 97,024 ft.-lbs.

Undercarriage
Center frame X-frame Track frame Box-section Track type Sealed Track adjuster Hydraulic Number of shoes 49 each side Number of carrier rollers 2 each side Number of track rollers 8 each side Coolant & Lubricant Capacity (Refilling) Fuel tank 172 US gal Coolant 12.4 US gal Engine 10.0 US gal Final drive, each side 2.9 US gal Swing drive 5.3 US gal Hydraulic tank 65.5 US gal Diesel Exhaust Fluid (DEF) tank 10.3 US gal

Operating Weight (Approximate)
Operating weight includes 23 ft. 2 in one-piece HD boom, 11 ft. 1 in arm, SAE heaped 2.94 yd3 bucket, rated capacity of lubricants, coolant, full fuel tank, operator, and standard equipment.

Fixed Gauge:
Shoes 28 in
Operating Weight 105,670 lbs. Ground Pressure 10.38 psi

Shoes 31.5' in
Operating Weight: 106,770 lbs. Ground Pressure 9.20 psi

Shoes 35.5 in
Operating Weight: 107,850 lbs. Ground Pressure 8.32 psi

Variable Gauge:
Shoes 28 in
Operating Weight 108,040 lbs. Ground Pressure 10.61 psi

Shoes 31.5 in
Operating Weight: 109,140 lbs. Ground Pressure 9.40 psi

Shoes 35.5 in
Operating Weight: 110,220 lbs. Ground Pressure 8.50 psi
