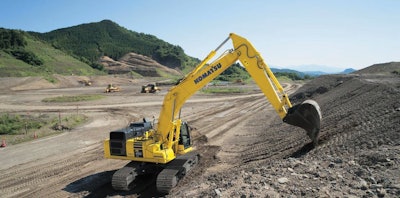

PC490LCi-11
Horsepower 359 HP @ 1,900 rpm
Operating weight 105,670 - 107,850 lbs.
Bucket capacity 1.47 - 4.15 yd³
Productivity and efficiency for mass excavation to fine grading
Excellent for mass excavating, trenching, or fine grading, our largest intelligent machine excavator can increase your productivity and efficiency without the worry of over-excavation from first to last pass, straight to grade.

Features and benefits
Adjusts to the operator's experience level
A fully integrated grade assist automatically traces the target surface to minimize over digging. A built-in facing angle compass ensures the machine is aligned with the target surface.

Auto stop control
To help eliminate potential damage during boom or bucket operation, the machine automatically stops when the bucket edge reaches the design surface.

Minimum distance control
iMC controls the bucket by automatically selecting the point closest to the target surface, which minimizes operator input while providing higher accuracy and grading confidence.

Critical precision for utility applications
For utility customers looking for the utmost precision, the excavator allows your operator to input structure, invert elevations of pipe runs and automatically calculates fall of pipe.

Powerful, advanced engine
Your fleet can be environmentally friendly without sacrificing power. Excavators with iMC 1.0 are equipment with a Tier 4 Final certified Komatsu SAA6D107E-3 engine, which features an integrated diesel particulate filter, hydraulically actuated Komatsu variable geometry turbocharger and selective Ccatalytic reduction system.

Stroke sensing hydraulic cylinder
Stroke sensing hydraulic cylinders provide real-time position that is immediately displayed to the operator. This is an improvement over conventional aftermarket machine guidance (indicate only) systems with tilt sensors that require time to stabilize.

Robust undercarriage
A large counterweight and robust undercarriage components help provide outstanding stability.

Specifications for PC490LCi-11
Engine
Model Komatsu SAA6D125E-7* Type Water-cooled, 4-cycle, direct injection Aspiration Komatsu Variable Geometry Turbocharger with air-to-air aftercooled EGR Number of cylinders 6 Bore 4.92 in Stroke 5.91 in Piston displacement 674 in³ Horsepower SAE J1995 : Gross 362 HP ISO 9249/SAE J1349 : Net 359 HP Rated rpm 1,900 rpm Governor All-speed control, electronic. Fan drive method for radiator cooling Hydraulic *EPA Tier 4 Final emissions certified

Hydraulics
Type: HydrauMind (Hydraulic Mechanical Intelligence) system, closed-center system with load sensing valve and pressure compensated valves, 6 selectable working modes

Main pump: Pumps for Boom, arm, bucket, swing, and travel circuits Type Variable displacement axial piston type Maximum flow 206 US gpm Hydraulic motors: Travel 2 x axial piston motor with parking brake Swing 1 x axial piston motor with swing holding brake Relief valve setting: Implement circuits 5,400 psi Travel circuit 5,400 psi Swing circuit 4,050 psi Pilot circuit 470 psi Hydraulic cylinders: Number of cylinders Bore x Stroke x Rod Diameter Boom / 2 6.3 x 61.8 x 4.3 in Arm / 1 7.3 x 71.7 x 4.7 in Bucket / 1 6.3 x 50 x 4.3 in Drives and Brakes Steering control Two levers with pedals Drive method Hydrostatic Maximum drawbar pull 73,880 lbs. Gradeability 70% Maximum travel speed: (Auto-Shift): High 3.4 mph Mid 2.6 mph Low 1.9 mph Service brake Hydraulic lock Parking brake Mechanical disc brake

Swing System
Drive method Hydrostatic motor Swing reduction Planetary gear Swing circle lubrication Grease-bathed Service brake Hydraulic lock Holding brake/Swing lock Mechanical disc brake Swing speed 9.0 rpm Swing torque 97,024 ft.-lbs.

Undercarriage
Center frame X-frame Track frame Box-section Track type Sealed Track adjuster Hydraulic Number of shoes 49 each side Number of carrier rollers 2 each side Number of track rollers 8 each side Coolant & Lubricant Capacity (Refilling) Fuel tank 172 US gal Coolant 12.4 US gal Engine 10.0 US gal Final drive, each side 2.9 US gal Swing drive 5.3 US gal Hydraulic tank 65.5 US gal Diesel Exhaust Fluid (DEF) tank 10.3 US gal

Operating Weight (Approximate)
Operating weight includes 23 ft. 2 in one-piece HD boom, 11 ft. 1 in arm, SAE heaped 2.94 yd3 bucket, rated capacity of lubricants, coolant, full fuel tank, operator, and standard equipment.

Fixed Gauge:
Shoes 28 in
Operating Weight 105,670 lbs. Ground Pressure 10.38 psi

Shoes 31.5 in
Operating Weight: 106,770 lbs. Ground Pressure 9.20 psi

Shoes 35.5 in
Operating Weight: 107,850 lbs. Ground Pressure 8.32 psi
