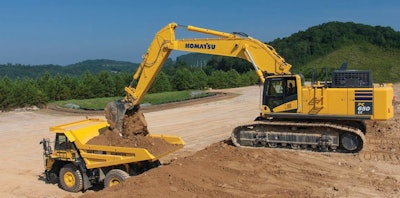

PC650LC-11
Horsepower 436 HP @ 1,800 rpm
Operating weight 140,456 - 145,284 lbs.
Bucket capacity 2.05 - 4.98 yd³
Versatility and high performance for heavy-duty applications
For high performance, transportability and adaptability to your heavy-duty applications, the PC650LC-11 excavator has a dual swing motor and three arm lengths. Your operator will appreciate the comfortable, climate-controlled cab and your crew will welcome an engine designed for easy access and maintenance.

Versatile High performance Built for longevity Transportability

Features and benefits
Increased horsepower
You will appreciate the low operating noise, easy serviceability of emissions components and increased horsepower (+7 hp) of the high-performance engine that is EPA Tier 4 Final emissions certified.

Engineered for long life
Your excavator is designed to be part of your fleet for a long time with its sturdy undercarriage, robust under guards and the use of thick, high-tensile-strength steel plates throughout the boom and arm structures.

Quick cycle times
For your heavy-duty projects, the dual swing motors and arm quick return circuit provide fast cycle times under heavy loads.

Easy to move
You will enjoy how easy it is to transport the PC650LC-11 between job sites and the less disassembly required to meet transportation weight requirements. Plus, you don't need to rent a crane to remove the counterweight during movement, which can help lower your transportation costs.

Simplified maintenance
Ease of serviceability with latched service access doors and grouped service points. Designed to save time and money on repairs, Tier 4 Final emission system diagnostics monitor up to 167 vehicle parameters and notifies you when and where maintenance is required.

Cost-saving hydraulic efficiency
You will appreciate this machine's increased hydraulic efficiency and reduced fuel consumption with its larger bucket return piping size that reduces hydraulic back pressure in the bucket circuit in order to match the machine load to hydraulic pump output.

Operator comfort
Your operator will enjoy the quiet cab with less vibration, auto climate control, adjustable arm rests, and a rearview camera monitoring system combined with mounted work lights and skylight that helps improve visibility upward and in low light working conditions.

Advanced telematics technology
Keep track of your machines and their productivity with free, state-of-the-art remote monitoring services.

Service and support
Protect your investment with complimentary factory-scheduled Komatsu Care maintenance for the first three years or 2,000 hours, whichever occurs first.

Specifications for PC650LC-11
Engine
Model Komatsu SAA6D140E-7* Type Water-cooled, 4-cycle, direct injection Aspiration Turbocharged, aftercooled, cooled, EGR Number of cylinders 6 Bore 5.51 in Stroke 6.50 in Piston displacement 930 in³ Horsepower: SAE J1995 (Gross) 439 HP ISO9249 / SAE J1349 (Net) 436 HP Rated rpm 1,800 rpm Hydraulic fan at maximum speed (Net) 392 HP Governor All-speed control, electronic Fan drive type Hydraulic *EPA Tier 4 Final emissions certified

Hydraulics
Type Open-center load sensing system, 3 selectable working modes

Main pump: Type Variable capacity piston Pumps for Boom, arm, bucket, swing, and travel circuits Maximum flow 2 x 108 US gpm Sub-pump for control circuit Gear type Hydraulic motors: Travel 2 x axial piston motors with parking brake Swing 2 x axial piston motors with swing holding brake Relief valve setting: Implement circuits 4,700 psi Travel circuit 4,980 psi Swing circuit 3,700 psi Pilot circuit 430 psi Hydraulic cylinders / Number of cylinders: Bore x Stroke: Boom / 2 7.3 x 67.9 x 4.7 in Arm / 1 7.9 x 80.5 x 5.5 in Bucket / 1 7.3 x 56.1 x 5.1 in Drives and Brakes Steering control Two levers with pedals Drive method Fully hydrostatic Travel motor Axial piston motor, in-shoe design Reduction system Planetary double reduction Maximum drawbar pull 93,250 lbs. Gradeability 70%, 35° Maximum travel speed: High 3.0 mph Low 1.9 mph Service brake Hydraulic lock Parking brake Oil disc brake

Swing System
Driven method 2 x hydraulic motors Swing reduction Planetary gear Swing circle lubrication Grease-bathed Service brake Oil disc brake Holding brake/Swing lock Mechanical disc brake Swing speed 8.3 rpm Swing torque 154,481 ft.-lbs.

Undercarriage
Center frame H-leg Track frame Box-section Track Type Sealed Track adjuster Hydraulic Number of Shoes 52 each side Number of carrier rollers 3 each side Number of track rollers 9 each side

Coolant & Lubricant Capacity (Refilling)
Fuel tank 232.5 US gal Coolant 20.1 US gal Engine 12.7 US gal Final drive, each side 2.65 US gal Swing drive 2 x 3.4 US gal Hydraulic tank 95.0 US gal Diesel Exhaust Fluid (DEF) tank 16.4 US gal Sound Performance Exterior ISO 6395 104 dB(A) Operator ISO 6396 73 dB(A)

Operating Weight (Approximate)
Operating weight includes 25 ft. 2 in one-piece boom, 11 ft. 6 in arm, ISO 7451 heaped 3.53 yd3 bucket, rated capacity of lubricants, coolant, full fuel tank, operator, and standard equipment.

Triple-Grouser Shoes Operating Weight Ground Pressure
24 in 140,456 lbs. 15.16 psi 30 in 142,396 lbs. 12.3 psi 35.5 in 144,292 lbs. 10.3 psi
