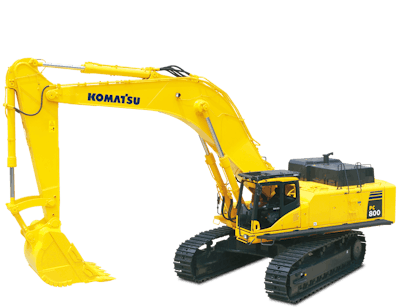

Standard Crawler Excavators PC800/LC-8
Raise the bar for power and efficiency
The Komatsu PC800-8 crawler excavator sets worldwide standards for quarry & mining equipment. Operator safety and comfort is a focal point of its design, and its outstanding performance and specifications will contribute directly to the success of your business.
Powerful digging forceExceptional drawbar pull and steering forceOptimal jobsite safetyVersatility and high performance for heavy-duty applications
For high performance, transportability and adaptability to your heavy-duty applications, the PC650LC-11 excavator has a dual swing motor and three arm lengths. Your operator will appreciate the comfortable, climate-controlled cab and your crew will welcome an engine designed for easy access and maintenance.
VersatileHigh performanceBuilt for longevityTransportability
Features and benefits
Increased horsepower
You will appreciate the low operating noise, easy serviceability of emissions components and increased horsepower (+7 hp) of the high-performance engine that is EPA Tier 4 Final emissions certified.
Engineered for long life
Your excavator is designed to be part of your fleet for a long time with its sturdy undercarriage, robust under guards and the use of thick, high-tensile-strength steel plates throughout the boom and arm structures.
Quick cycle times
For your heavy-duty projects, the dual swing motors and arm quick return circuit provide fast cycle times under heavy loads.
Easy to move
You will enjoy how easy it is to transport the PC650LC-11 between job sites and the less disassembly required to meet transportation weight requirements. Plus, you don't need to rent a crane to remove the counterweight during movement, which can help lower your transportation costs.
Simplified maintenance
Ease of serviceability with latched service access doors and grouped service points. Designed to save time and money on repairs, Tier 4 Final emission system diagnostics monitor up to 167 vehicle parameters and notifies you when and where maintenance is required.
Cost-saving hydraulic efficiency
You will appreciate this machine's increased hydraulic efficiency and reduced fuel consumption with its larger bucket return piping size that reduces hydraulic back pressure in the bucket circuit in order to match the machine load to hydraulic pump output.
Operator comfort
Your operator will enjoy the quiet cab with less vibration, auto climate control, adjustable arm rests, and a rearview camera monitoring system combined with mounted work lights and skylight that helps improve visibility upward and in low light working conditions.
Advanced telematics technology
Keep track of your machines and their productivity with free, state-of-the-art remote monitoring services.
Service and support
Protect your investment with complimentary factory-scheduled Komatsu Care maintenance for the first three years or 2,000 hours, whichever occurs first.
Specifications for PC650LC-11
Full specifications
Standard equipment
Optional equipment
Close all
US system
Metric
Engine
Model Komatsu SAA6D140E-7*Type Water-cooled, 4-cycle, direct injectionAspiration Turbocharged, aftercooled, cooled, EGRNumber of cylinders 6Bore 5.51 inStroke 6.50 inPiston displacement 930 in³Horsepower: SAE J1995 (Gross) 439 HPISO9249 / SAE J1349 (Net) 436 HPRated rpm 1,800 rpmHydraulic fan at maximum speed (Net) 392 HPGovernor All-speed control, electronicFan drive type Hydraulic*EPA Tier 4 Final emissions certified
Hydraulics
Type Open-center load sensing system,3 selectable working modesMain pump: Type Variable capacity pistonPumps for Boom, arm, bucket, swing, and travel circuitsMaximum flow 2 x 108 US gpmSub-pump for control circuit Gear typeHydraulic motors: Travel 2 x axial piston motors with parking brakeSwing 2 x axial piston motors with swing holding brakeRelief valve setting: Implement circuits 4,700 psiTravel circuit 4,980 psiSwing circuit 3,700 psiPilot circuit 430 psiHydraulic cylinders / Number of cylinders: Bore x Stroke:Boom / 2 7.3 x 67.9 x 4.7 inArm / 1 7.9 x 80.5 x 5.5 inBucket / 1 7.3 x 56.1 x 5.1 in
Drives and Brakes
Steering control Two levers with pedalsDrive method Fully hydrostaticTravel motor Axial piston motor, in-shoe designReduction system Planetary double reductionMaximum drawbar pull 93,250 lbs.Gradeability 70%, 35°Maximum travel speed: High 3.0 mphLow 1.9 mphService brake Hydraulic lockParking brake Oil disc brake
Swing System
Driven method 2 x hydraulic motorsSwing reduction Planetary gearSwing circle lubrication Grease-bathedService brake Oil disc brakeHolding brake/Swing lock Mechanical disc brakeSwing speed 8.3 rpmSwing torque 154,481 ft.-lbs.
Undercarriage
Center frame H-legTrack frame Box-section Track Type SealedTrack adjuster Hydraulic Number of Shoes52 each sideNumber of carrier rollers 3 each side Number of track rollers9 each side
Coolant & Lubricant Capacity (Refilling)
Fuel tank 232.5 US galCoolant 20.1 US galEngine 12.7 US galFinal drive, each side 2.65 US galSwing drive 2 x 3.4 US galHydraulic tank 95.0 US galDiesel Exhaust Fluid (DEF) tank16.4 US galSound PerformanceExterior ISO 6395 104 dB(A)Operator ISO 6396 73 dB(A)
Operating Weight (Approximate)
Operating weight includes 25 ft. 2 in one-piece boom, 11 ft. 6 in arm, ISO 7451 heaped 3.53 yd3 bucket, rated capacity of lubricants, coolant, full fuel tank, operator, and standard equipment.
Triple-Grouser Shoes Operating Weight Ground Pressure
24 in 140,456 lbs. 15.16 psi30 in 142,396 lbs. 12.3 psi35.5 in 144,292 lbs. 10.3 psi
