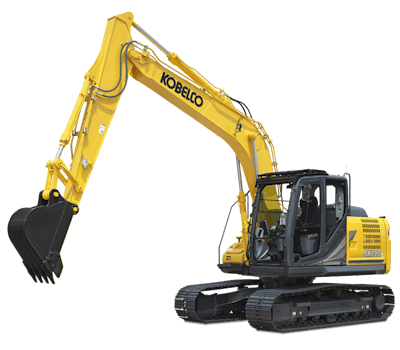

SK130LC-11
Engine Power - 96 hp (71.3 kW)
Operating Weight - 32,800 lbs (14,900 kg)
The next-generation KOBELCO SK130LC-11 boasts 96 hp and a whopping 24,800 lbf of digging force. It's nimble enough - and quiet enough - to work in spaces most conventional machines can't.
This revolutionary machine features NEXT-3E technology that lets you dial in the perfect balance of performance and fuel economy, turning fast cycle times into profit. Enhanced multi-function capabilities include an attachment selection system with adjustable flow-rate presets for the bucket, breaker, nibbler and thumb, allowing the operator to change between tools quickly and easily. Plus, premier operator comforts mean it's a pleasure to operate.
Overall Length 24' 8 (7,530 mm) Overall Height (to top of boom) 10' 3 (3,130 mm) Overall Width 8' 6 (2,590 mm) Ground Clearance of Rear End 2' 11 (910 mm) Ground Clearance 16.3 (415 mm) Tail Swing Radius 7' 2 (2,190 mm) Distance From Center of Swing To Rear End 7' 1 (2,170 mm) Tumbler Distance 10' (3,040 mm) Track Gauge 6' 6 (1,990 mm) Shoe Width 23.6 (600 mm) Overall Width of Upperstructure 8' 6 (2,590 mm)
PERFORMANCE
Travel Speed 3.5 mph (5.6 kph) / 2.1 mph (3.4 kph) Drawbar Pulling Force 31,700 lbf (141 kN)
WEIGHT
Operating Weight 32,800 lbs (14,900 kg)
ENGINE
Model Isuzu 4 JJ 1 XDRAC-01 Power Output 105 hp (78.5 kW) 96 hp (71.3 kW) Max. Torque 277 lbf (357 Nm) Displacement 183 in³ (2.999 ltr) Fuel Tank 74 gallons (US) (280 ltr)
Max. Digging Reach 28' 10 (8,780 mm) Max. Digging Reach At Ground Level 28' 3 (8,620 mm) Max. Digging Depth 19' 7 (5,980 mm) Max. Digging Height 28' 9 (8,750 mm) Max. Dumping Clearance 20' 11 (6,380 mm) Max. Vertical Wall Digging Depth 16' 1 (4,910 mm) Min. Swing Radius 9' 4 (2,840 mm) Digging Depth For 8 Feet Flat Bottom 18' 11 (5,770 mm)
