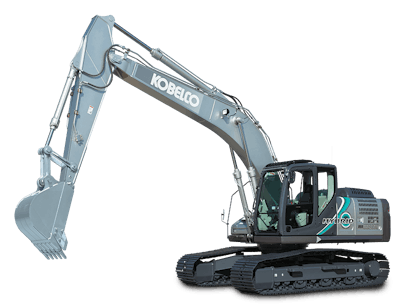

SK210HLC-10 Hybrid
Engine Power - 160 hp (119 kW)
Operating Weight - 52,500 lbs (23,800 kg)
The SK210HLC-10 Hybrid excavator boasts up to a 15% decrease in fuel consumption, a 7% increase in digging volume and an 88% decrease in NOx when compared to the standard SK210LC-10 machine. The KOBELCO SK210 Hybrid uses large-capacity lithium-ion batteries that have a runtime of up to 17.6 times longer compared to capacitors. And, the Hybrid is equipped with an electric swing motor that recharges the battery and assists the engine for digging and traveling as needed.
Overall Length 31' 9 (9,670 mm) Overall Height (to top of boom) 10' 5 (3,170 mm) Overall Width 10' 9 (3,280 mm) Ground Clearance of Rear End 3' 6 (1,060 mm) Ground Clearance 18 (450 mm) Tail Swing Radius 9' 7 (2,910 mm) Distance From Center of Swing To Rear End 9' 6 (2,900 mm) Tumbler Distance 12' (3,660 mm) Track Gauge 7' 10 (2,390 mm) Shoe Width 2' 7 (790 mm) Overall Width of Upperstructure 9' 4 (2,850 mm) AEM Pillar Award
PERFORMANCE
Travel Speed 3.7 mph (6 kph) / 2.2 mph (3.6 kph) Drawbar Pulling Force 50,800 lbf (226 kN)
WEIGHT
Operating Weight 52,500 lbs (23,800 kg)
ENGINE
Model Hino J05E UM-KSSK Power Output 166 hp (124 kW) 160 hp (119 kW) Max. Torque 472 lbf (640 Nm) Displacement 312.6 in³ (5.123 ltr) Fuel Tank 84.5 gallons (US) (320 ltr)
HYDRAULIC SYSTEM
Pump 2 Variable axial piston + Gear AEM Pillar Award
Max. Digging Reach 32' 6 (9,900 mm) Max. Digging Reach At Ground Level 31' 11 (9,730 mm) Max. Digging Depth 22' (6,700 mm) Max. Digging Height 31' 11 (9,720 mm) Max. Dumping Clearance 22' 8 (6,910 mm) Max. Vertical Wall Digging Depth 20' (6,100 mm) Min. Swing Radius 11' 8 (3,550 mm) Digging Depth For 8 Feet Flat Bottom 21' 5 (6,520 mm)
Bucket Digging Force 35,300 lbf (157 kN) Arm Crowding Force 25,200 lbf (112 kN)
