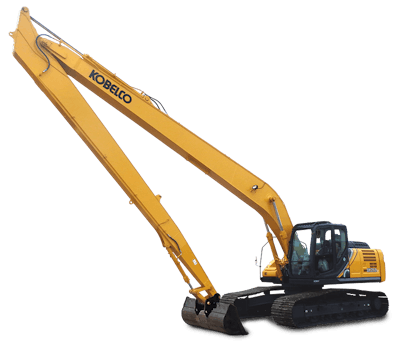

SK210LC-10 Long Reach
Engine Power - 160 hp (119 kW)
Operating Weight - 52,200 lbs (23,700 kg)
KOBELCO Long Reach excavators have the heavy-duty hydraulic fittings and connectors required to reliably lift huge loads from seemingly impossible distances. The SK210LC-10 LR has a maximum dig reach of 51' 11 to safely and securely tackle a wide variety of dredging, ditch cleaning and sloping jobs.
Overall Length 41' 8 (12,690 mm) Overall Height (to top of boom) 10' 3 (3,120 mm) Overall Width 10' 5 (3,180 mm) Ground Clearance of Rear End 3' 6 (1,060 mm) Ground Clearance 18 (450 mm) Tail Swing Radius 9' 7 (2,910 mm) Distance From Center of Swing To Rear End 9' 6 (2,900 mm) Tumbler Distance 12' (3,660 mm) Track Gauge 7' 10 (2,390 mm) Shoe Width 2' 7 (800 mm) Overall Width of Upperstructure 9' 4 (2,850 mm)
PERFORMANCE
Travel Speed 3.7 mph (6 kph) / 2.2 mph (3.6 kph) Drawbar Pulling Force 51,500 lbf (229 kN)
WEIGHT
Operating Weight 52,200 lbs (23,700 kg)
ENGINE
Model Hino J05E UM Power Output 166 hp (124 kW) 160 hp (119 kW) Max. Torque 472 lbf (640 Nm) Displacement 312.6 in³ (5.123 ltr) Fuel Tank 84.5 gallons (US) (320 ltr)
HYDRAULIC SYSTEM
Pump 2 Variable axial piston + Gear Max. Digging Reach 51' 11 (15,825 mm) Max. Digging Reach At Ground Level 51' 7 (15,720 mm) Max. Digging Depth 39' 5 (12,015 mm) Max. Digging Height 45' 7 (13,895 mm) Max. Dumping Clearance 37' 10 (11,530 mm) Max. Vertical Wall Digging Depth 36' 8 (11,175 mm) Min. Swing Radius 15' 6 (4,725 mm) Digging Depth For 8 Feet Flat Bottom 39' 1 (11,910 mm)
