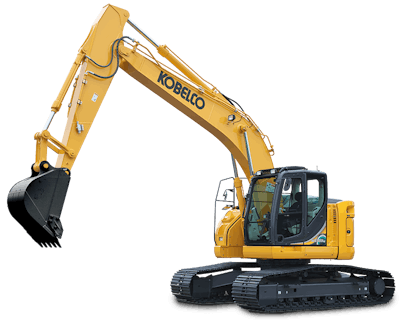

SK230SRLC-5
Engine Power - 160 hp (119 kW)
Operating Weight - 56,400 lbs (25,600 kg)
The SK230SRLC-5 acts like a conventional machine, but works in tight spaces only a short rear swing excavator can. Like all KOBELCO SR Series models, this unit is built with our exclusive iNDr Cooling System that reduces dust while delivering ultra-quiet operation, as well as multiple mode settings that allow you to dial in the perfect balance of performance and fuel economy. Plus, premier operator comforts mean it's easier to stay focused on the task at hand.
Overall Length 28' 11 (8,830 mm) Overall Height (to top of boom) 10' 4 (3,160 mm) Overall Width 10' 4 (3,180 mm) Ground Clearance of Rear End 3' 5 (1,030 mm) Ground Clearance 17 (445 mm) Tail Swing Radius 6' (1,840 mm) Distance From Center of Swing To Rear End 6' (1,840 mm) Tumbler Distance 12' (3,660 mm) Track Gauge 7' 1 (2,390 mm) Shoe Width 2' 7 (790 mm) Overall Width of Upperstructure 9' 10 (2,990 mm)
PERFORMANCE
Travel Speed 3.6 mph (5.8 kph) / 2.2 mph (3.5 kph) Drawbar Pulling Force 51,500 lbf (229 kN)
WEIGHT
Operating Weight 56,400 lbs (25,600 kg)
ENGINE
Model Hino J05E UM-KSSL Power Output 166 hp (124 kW) 160 hp (119 kW) Max. Torque 472 lbf (640 Nm) Displacement 312.6 in³ (5.123 ltr) Fuel Tank 87.2 gallons (US) (330 ltr)
Max. Digging Reach 31' 10 (9,700 mm) Max. Digging Reach At Ground Level 31' 3 (9,530 mm) Max. Digging Depth 21' 7 (6,580 mm) Max. Digging Height 34' 9 (10,580 mm) Max. Dumping Clearance 25' 4 (7,710 mm) Max. Vertical Wall Digging Depth 19' 6 (5,950 mm) Min. Swing Radius 7' 8 (2,370 mm) Digging Depth For 8 Feet Flat Bottom 20' 11 (6,370 mm) Bucket Digging Force 29,700 lbf (132 kN) Arm Crowding Force 21,800 lbf (96.8 kN)
