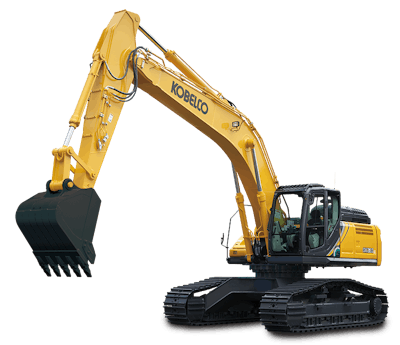

SK260LC-10 H&W
Engine Power - 178 hp (133 kW)
Operating Weight - 63,100 lbs (28,600 kg)
With their wider stance and increased clearance, KOBELCO High & Wide excavators can tackle jobs usually reserved for bigger machines - including forestry work, craning large pipe and loading out trucks. The SK260LC-10 H&W features an overall width of 11' 8, making it stable under the heaviest of loads. Plus, it offers all the standard features you expect from a KOBELCO, including independent travel, swing flashers and premier operator comforts.
Overall Length 33' 1 (10,090 mm) Overall Height (to top of boom) 11' 3 (3,440 mm) Overall Width 11' 8 (3,550 mm) Ground Clearance of Rear End 4' 8 (1,430 mm) Ground Clearance 31 (780 mm) Tail Swing Radius 10' 2 (3,100 mm) Distance From Center of Swing To Rear End 10' 1 (3,070 mm) Tumbler Distance 12' 5 (3,790 mm) Track Gauge 9' 4 (2,850 mm) Shoe Width 2' 4 (700 mm) Overall Width of Upperstructure 10' 3 (3,120 mm)
PERFORMANCE
Travel Speed 3.7 mph (5.8 kph) / 2.2 mph (3.6 kph) Drawbar Pulling Force 50,800 lbf (226 kN)
WEIGHT
Operating Weight 63,100 lbs (28,600 kg)
ENGINE
Model Hino J05E UN-KSSD Power Output 185 hp (138 kW) 178 hp (133 kW) Max. Torque 469 lbf (636 Nm) Displacement 312.6 in³ (5.123 ltr) Fuel Tank 106.5 gallons (US) (403 ltr)
HYDRAULIC SYSTEM
Pump 2 Variable axial piston + Gear Max. Digging Reach 33' 10 (10,312 mm) Max. Digging Reach At Ground Level 30' 9 (10,070 mm) Max. Digging Depth 21' 10 (6,660 mm) Max. Digging Height 33' 3 (10,130 mm) Max. Dumping Clearance 23' 8 (7,220 mm) Max. Vertical Wall Digging Depth 19' 1 (5,810 mm) Min. Swing Radius 12' 10 (3,910 mm) Digging Depth For 8 Feet Flat Bottom 21' 3 (6,480 mm) Bucket Digging Force 42,000 lbf (187 kN) Arm Crowding Force 30,100 lbf (134 kN)
