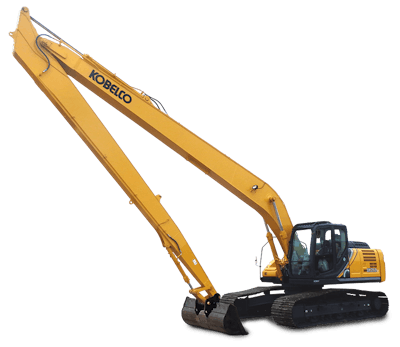

SK260LC-10 Long Reach
Engine Power - 178 hp (133 kW)
Operating Weight - 62,000 lbs (28,100 kg)
Special jobs require specially equipped machines. KOBELCO Long Reach excavators have the heavy-duty hydraulic fittings and connectors required to reliably lift huge loads from seemingly impossible distances. The SK260LC-10 LR has a maximum dig reach of 60' 10 to safely and securely tackle even the toughest dredging, ditch cleaning or sloping jobs you've got.

Overall Length 47' 8 (14,520 mm) Overall Height (to top of boom) 10' 4 (3,140 mm) Overall Width 11' 1 (3,390 mm) Ground Clearance of Rear End 3' 7 (1,090 mm) Ground Clearance 18 (460 mm) Tail Swing Radius 10' 2 (3,100 mm) Distance From Center of Swing To Rear End 10' 1 (3,070 mm) Tumbler Distance 12' 8 (3,850 mm) Track Gauge 8' 6 (2,590 mm) Shoe Width 2' 7 (800 mm) Overall Width of Upperstructure 10' 3 (3,120 mm)

PERFORMANCE
Travel Speed 3.7 mph (5.8 kph) / 2.2 mph (3.6 kph) Drawbar Pulling Force 55,100 lbf (245 kN)

WEIGHT
Operating Weight 62,000 lbs (28,100 kg)

ENGINE
Model Hino J05E-UN Power Output 185 hp (138 kW) 178 hp (133 kW) Max. Torque 469 lbf (636 Nm) Displacement 312.6 in³ (5.123 ltr) Fuel Tank 106.5 gallons (US) (403 ltr)

HYDRAULIC SYSTEM
Pump 2 Variable axial piston + Gear Max. Digging Reach 60' 10 (18,540 mm) Max. Digging Reach At Ground Level 60' 6 (18,440 mm) Max. Digging Depth 48' 4 (14,730 mm) Max. Digging Height 47' 9 (14,555 mm) Max. Dumping Clearance 40' 5 (12,320 mm) Max. Vertical Wall Digging Depth 40' 5 (12,320 mm) Min. Swing Radius 18' 4 (5,590 mm) Digging Depth For 8 Feet Flat Bottom 47' 10 (14,580 mm)
