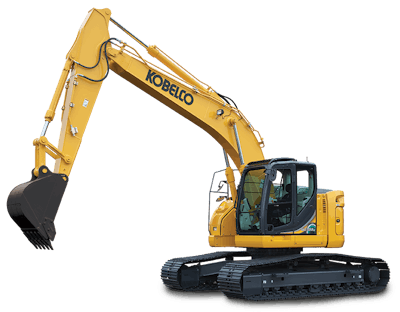

SK270SRLC-5
Engine Power - 160 hp (119 kW)
Operating Weight - 60,000 lbs (27,200 kg)
The SK270SRLC-5 is among the first KOBELCO units to feature our reconfigured iNDr Cooling System with two offset ducts on top that maintain quiet and cool operation - even with an enlarged engine compartment to meet Tier IV Final standards. The result is a powerful machine with reduced fuel consumption and minimal exhaust emissions.
With a minimal swing radius, power boost capability, independent travel, designated ECO-mode and other KOBELCO exclusive features, this machine is one of the most versatile job site tools out there.
Overall Length 29' 8 (9,040 mm) Overall Height (to top of boom) 11' 3 (3,430 mm) Overall Width 11' 1 (3,390 mm) Ground Clearance of Rear End 3' 5 (1,050 mm) Ground Clearance 17 (455 mm) Tail Swing Radius 6' 2 (1,880 mm) Distance From Center of Swing To Rear End 6' 2 (1,880 mm) Tumbler Distance 12' 7 (3,850 mm) Track Gauge 8' 5 (2,590 mm) Shoe Width 2' 7 (800 mm) Overall Width of Upperstructure 9' 10 (2,990 mm)
PERFORMANCE
Travel Speed 3.2 mph (5.2 kph) / 2 mph (3.2 kph) Drawbar Pulling Force 55,300 lbf (246 kN)
WEIGHT
Operating Weight 60,000 lbs (27,200 kg)
ENGINE
Model Hino J05E UM-KSSL Power Output 166 hp (124 kW) 160 hp (119 kW) Max. Torque 472 lbf (640 Nm) Displacement 312.6 in³ (5.123 ltr) Fuel Tank 87.2 gallons (US) (330 ltr)
HYDRAULIC SYSTEM
Pump 2 Variable axial piston + Gear Dozer Blade Blade Height: 27 (685 mm) Blade Width: 11' 1 (3,390 mm) Max. Raise Height: 22 (555 mm) Dig Depth: 14 (355 mm) Max. Digging Reach 32' 3 (9,850 mm) Max. Digging Reach At Ground Level 31' 9 (9,680 mm) Max. Digging Depth 21' 9 (6,650 mm) Max. Digging Height 36' 9 (11,210 mm) Max. Dumping Clearance 27' 3 (8,330 mm) Max. Vertical Wall Digging Depth 19' 11 (6,060 mm) Min. Swing Radius 6' 5 (1,960 mm) Digging Depth For 8 Feet Flat Bottom 21' 3 (6,470 mm)
Bucket Digging Force 35,300 lbf (157 kN) Arm Crowding Force 25,200 lbf (112 kN)
