SK300LC-10 Long Reach

22f9605d

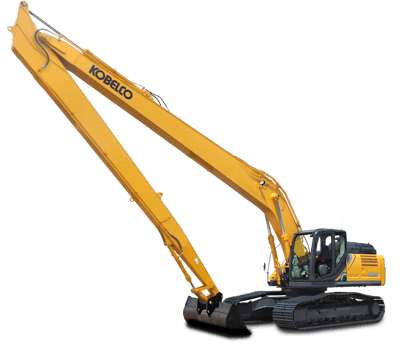

SK300LC-10 Long Reach
Engine Power - 252 hp (188 kW)
Operating Weight - 77,473 lbs (35,141 kg)
Special jobs require specially equipped machines. KOBELCO Long Reach excavators have the heavy-duty hydraulic fittings and connectors required to reliably lift huge loads from seemingly impossible distances. The SK300LC-10 LR has a maximum dig reach of 63' 1 to safely and securely tackle even the toughest dredging, ditch cleaning or sloping jobs you've got.

Ground Clearance 20 (510 mm) Tumbler Distance 13' 1 (4,000 mm) Track Gauge 8' 5 (2,590 mm) Shoe Width 2' 7 (800 mm) Overall Width of Upperstructure 10' 3 (3,120 mm)

PERFORMANCE
Travel Speed 3.2 mph (5.2 kph) / 1.9 mph (3.1 kph) Drawbar Pulling Force 62,900 lbf (280 kN)

WEIGHT
Operating Weight 77,473 lbs (35,141 kg)

ENGINE
Model Hino J08E-VV Power Output 268 hp (200 kW) 252 hp (188 kW) Max. Torque 729 lbf (989 Nm) Displacement 468.9 in³ (7.684 ltr) Fuel Tank 132.9 gallons (US) (503 ltr)

HYDRAULIC SYSTEM
Pump 3 Variable displacement and Gear Max. Digging Reach 63' 1 (19,230 mm) Max. Digging Reach At Ground Level 62' 9 (19,120 mm) Max. Digging Depth 48' 10 (14,900 mm) Max. Digging Height 49' 10 (15,190 mm) Max. Dumping Clearance 41' 4 (12,590 mm) Max. Vertical Wall Digging Depth 47' (14,330 mm) Min. Swing Radius 20' 2 (6,160 mm) Digging Depth For 8 Feet Flat Bottom 48' 5 (14,750 mm)

Fill out the form below to request more information about SK300LC-10 Long Reach
