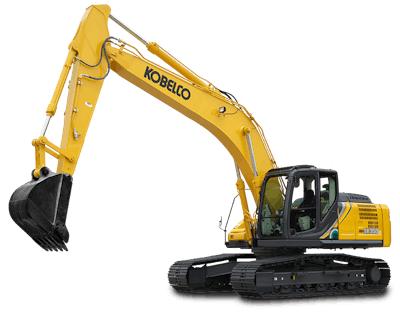

SK350LC-10
Engine Power - 270 hp (201 kW)
Operating Weight - 83,300 lbs (37,800 kg)
Perhaps the most versatile machine in the KOBELCO lineup, the SK350LC-10 is popular among owners around the world. A powerful HINO engine delivers NEXT-3E technology that lets you dial in the perfect balance of performance and fuel economy. You'll even find we've taken care of the little things like adding swing flashers and a color rear view camera. Plus, premier operator comforts mean it's easier for you to stay focused on the task at hand.
Overall Length 37' 4 (11,380 mm) Overall Height (to top of boom) 12' 2 (3,700 mm) Overall Width 11' 5 (3,490 mm) Ground Clearance of Rear End 3' 11 (1,200 mm) Ground Clearance 20 (500 mm) Tail Swing Radius 11' 10 (3,600 mm) Distance From Center of Swing To Rear End 11' 10 (3,600 mm) Tumbler Distance 13' 3 (4,050 mm) Track Gauge 8' 6 (2,590 mm) Shoe Width 2' 8 (800 mm) Overall Width of Upperstructure 10' 3 (3,120 mm)
PERFORMANCE
Travel Speed 3.7 mph (5.8 kph) / 2.2 mph (3.6 kph) Drawbar Pulling Force 70,600 lbf (314 kN)
WEIGHT
Operating Weight 83,300 lbs (37,800 kg)
ENGINE
Model Hino J08E VV-KSDP Power Output 286 hp (213 kW) 270 hp (201 kW) Max. Torque 729 lbf (989 Nm) Displacement 468.9 in³ (7.684 ltr) Fuel Tank 132.9 gallons (US) (503 ltr)
HYDRAULIC SYSTEM
Pump 2 Variable axial piston + Gear Max. Digging Reach 36' 11 (11,260 mm) Max. Digging Reach At Ground Level 36' 3 (11,060 mm) Max. Digging Depth 24' 10 (7,560 mm) Max. Digging Height 34' 9 (10,580 mm) Max. Dumping Clearance 24' 2 (7,370 mm) Max. Vertical Wall Digging Depth 21' 8 (6,610 mm) Min. Swing Radius 14' 2 (4,310 mm) Digging Depth For 8 Feet Flat Bottom 24' 3 (7,400 mm) Bucket Digging Force 56,200 lbf (250 kN) Arm Crowding Force 40,700 lbf (181 kN)
