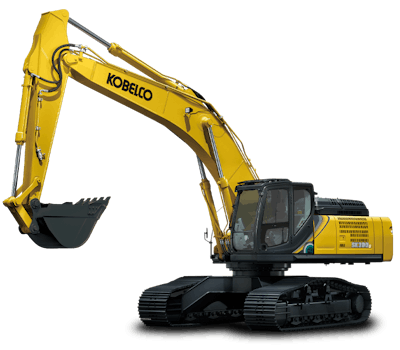

SK390LC-10
Engine Power - 270 hp (201 kW)
Operating Weight - 83,600 lbs (37,900 kg)
The unique KOBELCO SK390LC-10 is designed with the undercarriage of a High & Wide excavator and the upper structure of a Conventional excavator. With a wider stance, increased clearance, and larger boom cylinders, the SK390LC-10 delivers superior stability and maximum lift capacity to increase jobsite performance.
You'll even find we've taken care of the little things like adding swing flashers and a color rear view camera. Plus, premier operator comforts mean it's easier for you to stay focused on the task at hand.
Overall Height (to top of boom) 11' 7 (3,520 mm) Overall Width 12' 4 (3,750 mm) Ground Clearance of Rear End 4' 11 (1,510 mm) Ground Clearance 30.9 (785 mm) Tail Swing Radius 11' 10 (3,600 mm) Distance From Center of Swing To Rear End 11' 10 (3,600 mm) Tumbler Distance 13' 2 (4,050 mm) Track Gauge 9' 8 (2,950 mm) Shoe Width 27.6 (700 mm) Overall Width of Upperstructure 10' 3 (3,120 mm)
PERFORMANCE
Travel Speed 3.6 mph (5.8 kph) / 2.2 mph (3.6 kph) Drawbar Pulling Force 70,600 lbf (314 kN)
WEIGHT
Operating Weight 83,600 lbs (37,900 kg)
ENGINE
Model Hino J08EVV Power Output 286 hp (213 kW) 270 hp (201 kW) Max. Torque 750 lbf (1017 Nm) Displacement 468.9 in³ (7.684 ltr) Fuel Tank 132.9 gallons (US) (503 ltr)
HYDRAULIC SYSTEM
Pump 2 Variable axial piston Max. Digging Reach 36' 11 (11,260 mm) Max. Digging Reach At Ground Level 36' 1 (11,000 mm) Max. Digging Depth 23' 1 (7,040 mm) Max. Digging Height 36' 5 (11,100 mm) Max. Dumping Clearance 25' 10 (7,870 mm) Max. Vertical Wall Digging Depth 20' 7 (6,270 mm) Min. Swing Radius 13' 7 (4,140 mm) Digging Depth For 8 Feet Flat Bottom 22' 7 (6,890 mm) Bucket Digging Force 56,200 lbf (250 kN) Arm Crowding Force 40,700 lbf (191 kN)
