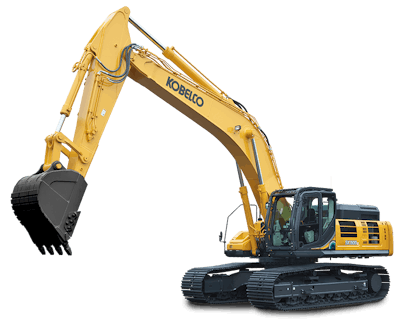

SK500LC-10
Engine Power - 369 hp (271 kW)
Operating Weight - 114,000 lbs (51,700 kg)
Our new Generation 10 SK500LC-10 model offers all the features of its predecessor, but boasts even more power and efficiency. You'll see up to a 7% increase in work volume per hour while enjoying up to a 10% decrease in fuel consumption in S-mode and a further 6% decrease in ECO-mode.
We're so confident in our Generation 10 models that we even extend the warranty to a full three years or 3,000 hours. Plus, they still feature all KOBELCO's exclusive features, including the iNDr noise and dust reduction system, independent travel, no time limit power boost and more
Overall Length 40' 1 (12,230 mm) Overall Height (to top of boom) 14' 4 (4,360 mm) Overall Width 11' 11 (3,650 mm) Ground Clearance of Rear End 4' 5 (1,340 mm) Ground Clearance 20.1 (510 mm) Tail Swing Radius 12' 6 (3,800 mm) Distance From Center of Swing To Rear End 12' 6 (3,800 mm) Tumbler Distance 14' 5 (4,400 mm) Track Gauge 9' (2,750 mm) Shoe Width 3' (900 mm) Overall Width of Upperstructure 10' 2 (3,110 mm)
PERFORMANCE
Travel Speed 3.4 mph (5.4 kph) / 2.1 mph (3.4 kph) Drawbar Pulling Force 93,300 lbf (415 kN)
WEIGHT
Operating Weight 114,000 lbs (51,700 kg)
ENGINE
Model Hino P11C-VN Power Output 369 hp (271 kW) Max. Torque 1084 lbf (1470 Nm) Displacement 642 in³ (10.52 ltr) Fuel Tank 169.1 gallons (US) (638 ltr)
HYDRAULIC SYSTEM
Pump 2 Variable axial piston + Gear
Max. Digging Reach 39' 7 (12,070 mm) Max. Digging Reach At Ground Level 38' 10 (11,840 mm) Max. Digging Depth 25' 7 (7,810 mm) Max. Digging Height 35' 11 (10,940 mm) Max. Dumping Clearance 24' 10 (7,580 mm) Max. Vertical Wall Digging Depth 23' 4 (7,120 mm) Min. Swing Radius 16' 10 (5,140 mm) Digging Depth For 8 Feet Flat Bottom 25' 2 (7,670 mm)
Bucket Digging Force 65,600 lbf (292 kN) Arm Crowding Force 44,300 lbf (197 kN)
