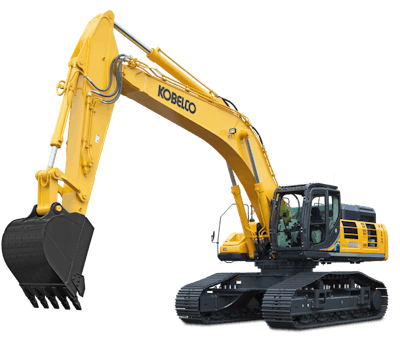

SK500LC-10 H&W
Engine Power - 369 hp (271 kW)
Operating Weight - 124,800 lbs (56,600 kg)
With their wider stance and increased clearance, KOBELCO High & Wide excavators can tackle jobs usually reserved for bigger machines - including forestry work, craning large pipe and loading out trucks. As the largest mahcine in this series, the SK500LC-10 H&W is designed to be stable under the heaviest of loads. Plus, it offers all the standard features you expect from a KOBELCO, including independent travel, swing flashers and premier operator comforts.
Overall Length 40' 1 (12,220 mm) Overall Height (to top of boom) 13' 10 (4,220 mm) Overall Width 13' 2 (4,020 mm) Ground Clearance of Rear End 5' 7 (1,690 mm) Ground Clearance 34 (870 mm) Tail Swing Radius 12' 6 (3,800 mm) Distance From Center of Swing To Rear End 12' 6 (3,800 mm) Tumbler Distance 14' 5 (4,400 mm) Shoe Width 2' 8 (800 mm) Overall Width of Upperstructure 10' 2 (3,110 mm)
PERFORMANCE
Travel Speed 3.4 mph (5.4 kph) / 2.1 mph (3.4 kph) Drawbar Pulling Force 92,700 lbf (412 kN)
WEIGHT
Operating Weight 124,800 lbs (56,600 kg)
ENGINE
Model Hino P11C-VN Power Output 369 hp (271 kW) Max. Torque 1084 lbf (1470 Nm) Displacement 642 in³ (10.52 ltr) Fuel Tank 169.1 gallons (US) (638 ltr)
HYDRAULIC SYSTEM
Pump 2 Variable axial piston + Gear Max. Digging Reach 39' 7 (12,070 mm) Max. Digging Reach At Ground Level 38' 7 (11,770 mm) Max. Digging Depth 24' 6 (7,470 mm) Max. Digging Height 37' (11,280 mm) Max. Dumping Clearance 26' (7,920 mm) Max. Vertical Wall Digging Depth 22' 3 (6,770 mm) Min. Swing Radius 16' 10 (5,140 mm) Digging Depth For 8 Feet Flat Bottom 24' (7,320 mm) Bucket Digging Force 65,600 lbf (292 kN) Arm Crowding Force 49,900 lbf (222 kN)
