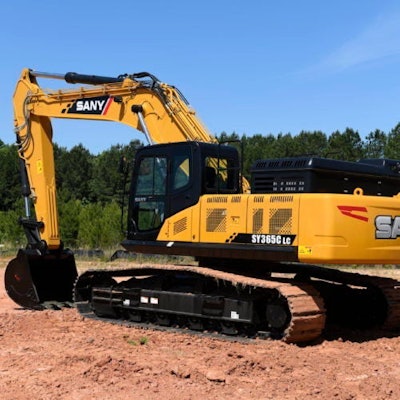

SY365C EXCAVATOR
OPERATING WEIGHT 80,910 LB 36,700 kg
GROSS POWER 275 HP 205 kW
DIG DEPTH 23' 11 7,290 mm
The SANY SY365C large excavator is built to deliver performance 365 days a year in any conditions, any climate and any terrain. Designed to provide outstanding performance even under continuous stress, this large excavator offers both reliability and versatility and can handle earthmoving, demolition or road-building jobs with ease. Plus, with an efficient design and selectable work modes, the SY365C large excavator can provide optimized performance to increase productivity while decreasing operating costs.
Powerful, robust and reliable powertrain & hydraulic components for long life in the most demanding applications Optimized negative flow hydraulics improve operating efficiency by up to 5% and fuel efficiency by up to 10%
A high-performance cooling system equipped with electronic control fan clutch provides clean, quiet operation Selectable working modes match machine performance to the application, maximizing productivity and minimizing operating costs
WHY SANY LARGE EXCAVATORS?
Bigger is better. Built to endure the hardest working environments, SANY's large excavators have been newly redesigned for high performance based on operator feedback. New for 2023, the SY385C and SY750H feature a dedicated pump for specialized attachments, an updated cab with ergonomic controls and a large, touchscreen display, blind side camera and push button start. The entire family runs strong on powerful, reliable Cummins engines.
THE INVESTMENT THAT KEEPS ON RETURNING
Simply put, these machines are the achievers of any jobsite. They deliver all day long and they come loaded with standard features and the industry's strongest standard warranty. They're reliable and durable to take you the extra mile.
SAFETY
At SANY America, our equipment is designed with safety and service in mind. Before any machine hits the ground, it receives a pre-delivery inspection to ensure proper and safe operation. Standard safety features on all models include, but are not limited to, high visibility, intuitive control layouts, ergonomic joysticks and switches, adjustable and comfortable operator seats, camera systems and LED work light packages.
SERVICE
When we say that SANY machines are built to endure, we’re really talking about service. SANY equipment is intentionally designed to be easily and efficiently serviced, with features such as wide compartment doors and ground level access where possible to make maintenance more efficient. Because ease of service means back in service.
WE’VE GOT YOUR BACK
To provide peace of mind and ensure maximum uptime, SANY backs all its equipment with robust standard warranties. That’s our commitment to keeping your fleet running at peak performance. Our network of local dealers will partner with you for routine maintenance and be there for warranty repairs. You can trust SANY to keep you moving, year-round.
SPECIFICATIONS & COMPAREADD A MODEL TO COMPARE MODEL SY365C
OVERALL DIMENSIONS
HIDE Boom Length 6470mm 21' 3 Stick (Arm) Length 3178mm 10' 5 Transport Length 11100mm 36' 5 Transport Width 3390mm 11' 1 Transport Height 3600mm 11' 10 Upper Structure Width 3020mm 9' 11 Cab Height 3140mm 10' 4 Blade Height Track Width (standard shoe) 800mm 31 Track Gauge 2590mm 8' 6 Ground Clearance (minimum) 550mm 22 Tail Swing Radius 3300mm 10' 10 Track Length on Ground 4140mm 13' 7 Track Length 5055mm 16' 7
TECHNICAL SPECIFICATIONS
HIDE Operating Weight 36700 kg 80,910 lb Ground Pressure 48.7 kPa 7.1 psi Engine Cummins QSL9 T4F Displacement 8.9 L 543.1 in3 Gross Power 205 kW 275 HP
Hydraulics Negative Flow Control with Pilot Control
Main Hydraulic Pump Axial Piston - Variable Displacement
Operating Flow (maximum) 740.0 L/min 195.5 gal/min Operating Pressure (maximum) 34.3 MPa 4975 psi Power Boost Pressure (maximum) 37.3 MPa 5410 psi
Travel Motor Axial Piston with Park Brake
Travel Pressure (maximum) 34.3 MPa 4975 psi Travel Speeds (maximum) 3.4 / 5.2 km/hr 2.1 / 3.2 mph Travel Effort (maximum) 214.0 kN 48,109 lbf Grade Capability 35°
Swing Motor Axial Piston with Swing Brake
Swing Pressure (maximum) 27.5 MPa 3989 psi Swing Speed (maximum) 9.8 RPM Undercarriage (standard) Steel Track Track Shoe Width (standard) 800 mm 2' 7 Track Rollers (per side) 9 Carrier Rollers (per side) 2
WORKING RANGE
HIDE Boom Length 6470 mm 21' 3 Stick (Arm) Length 3178 mm 10' 5 Maximum Digging Height 9820 mm 32' 3 Maximum Dumping Height 7150 mm 23' 5 Maximum Digging Depth 7290 mm 23' 11 Maximum Vertical Wall Digging Depth 6480 mm 21' 3 Maximum Reach at Ground Level 11090 mm 36' 5 Minimum Swing Radius 4450 mm 14' 7
