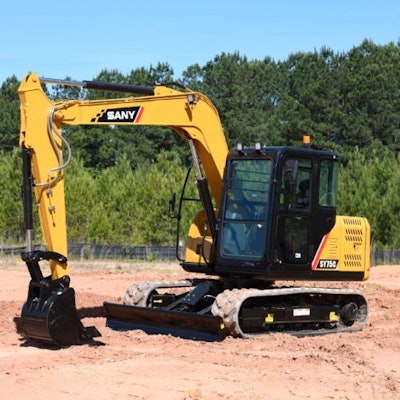

SY75C EXCAVATOR

Built tough with reinforced boom, arm, swing platform and undercarriage, the SY75C boasts an efficient and reliable Isuzu T4F engine. Featuring joystick controls and a bi-directional auxiliary hydraulic system, this compact excavator proves you don't have to trade size for performance. The comfortable cockpit features heating and AC for all-day operation in any climate, and the maintenance-friendly design allows for quick access to all service points to minimize downtime.

Powered by a reliable, efficient Isuzu T4F engine Extra reinforcements in the boom, arm, swing platform and undercarriage increase stability and service life Equipped with joystick controlled, proportional, bi-directional auxiliary hydraulics

WHY SANY SWING BOOM EXCAVATORS?

SANY's swing boom excavators are the champions of confined spaces. Offered in a variety of machine configurations, these mini and small excavators fit various applications like landscaping, utilities, general construction, sewer and land management. All models feature standard auxiliary lines to run powered attachments. The SY35U through the SY80U boast spacious, comfortable, climate-controlled cabs to keep you cool in the summer and warm in the winter.

THE INVESTMENT THAT KEEPS ON RETURNING

Simply put, these machines are the achievers of any jobsite. They deliver all day long and they come loaded with standard features and the industry's strongest standard warranty. They're reliable and durable to take you the extra mile.

SAFETY

At SANY America, our equipment is designed with safety and service in mind. Before any machine hits the ground, it receives a pre-delivery inspection to ensure proper and safe operation. Standard safety features on all models include, but are not limited to, high visibility, intuitive control layouts, ergonomic joysticks and switches, adjustable and comfortable operator seats, camera systems and LED work light packages.

SERVICE

When we say that SANY machines are built to endure, we’re really talking about service. SANY equipment is intentionally designed to be easily and efficiently serviced, with features such as wide compartment doors and ground level access where possible to make maintenance more efficient. Because ease of service means back in service.

WE’VE GOT YOUR BACK

To provide peace of mind and ensure maximum uptime, SANY backs all its equipment with robust standard warranties. That’s our commitment to keeping your fleet running at peak performance. Our network of local dealers will partner with you for routine maintenance and be there for warranty repairs. You can trust SANY to keep you moving, year-round.

SPECIFICATIONS & COMPAREADD A MODEL TO COMPARE

MODEL SY75C

OVERALL DIMENSIONS

HIDE Boom Length 3720mm 12' 2 Stick (Arm) Length 2050mm 6' 9 Transport Length 6121mm 20' 1 Transport Width 2220mm 7' 3 Transport Height 2720mm 8' 11 Upper Structure Width 2040mm 6' 8 Cab Height Blade Height 405mm 16 Track Width (standard shoe) 450mm 18 Track Gauge 1750mm 5' 9 Ground Clearance (minimum) 380mm 15 Tail Swing Radius 1800mm 5' 11 Track Length on Ground 2195mm 7' 2 Track Length 2820mm 9' 3


TECHNICAL SPECIFICATIONS

HIDE Operating Weight 7280 kg 16,050 lb Ground Pressure 33.0 kPa 4.8 psi


Engine Isuzu CP-4LE2XA3C-01

Displacement 2.2 L 134.3 in3 Gross Power 43.0 kW 57.7 HP


Hydraulics Load Sensing with Pilot Control

Main Hydraulic Pump Axial Piston - Variable Displacement

Operating Flow (maximum) 149.0 L/min 39.4 gal/min Operating Pressure (maximum) 26.3 MPa 3814 psi Power Boost Pressure (maximum)


Travel Motor Axial Piston with Park Brake

Travel Pressure (maximum) 26.3 MPa 3814 psi Travel Speeds (maximum) 2.8 / 5.3 km/hr 1.7 / 3.3 mph Travel Effort (maximum) 56.8 kN 12,769 lbf Grade Capability 35°


Swing Motor Axial Piston with Swing Brake

Swing Pressure (maximum) 21.6 MPa 3133 psi Swing Speed (maximum) 10.5 rpm


Undercarriage (standard) Belted Rubber Track

Track Shoe Width (standard) 450 mm 18 Track Rollers (per side) 5 Carrier Rollers (per side) 1


WORKING RANGE

HIDE Boom Length 3720 mm 12' 2 Stick (Arm) Length 2050 mm 6' 9 Maximum Digging Height 7390 mm 24' 3 Maximum Dumping Height 5490 mm 18' 0 Maximum Digging Depth 4450 mm 14' 7 Maximum Vertical Wall Digging Depth 3840 mm 12' 7 Maximum Reach at Ground Level 6505 mm 21' 4 Minimum Swing Radius 1940 mm 6' 4
