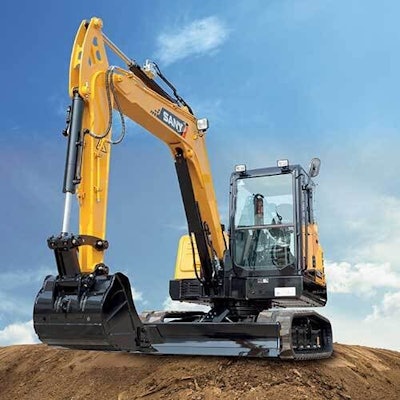

SY60C EXCAVATOR

OPERATING WEIGHT 13,448 LB 6,100 kg

GROSS POWER 56.9 HP 42.4 kW

DIG DEPTH 13' 0 3,950 mm

The SY60C is ready to get to work. Featuring a durable design to take on rough working conditions and a powerful and robust powertrain to deliver a long working life, this excavator is made for difficult jobs in narrow and confined spaces. Using an optimized, load-sensing hydraulics system, the SY60C offers improved operating efficiency of up to 5% and as much as a 10% increase in fuel efficiency. Get a machine that saves you both time and money with the SY60C.

Powerful, robust and reliable powertrain & hydraulic components for long life in the most demanding applications Optimized load sensing hydraulics improve operating efficiency by up to 5% and fuel efficiency by up to 10% Easily accessible service points and a detachable radiator screen are among the features that make scheduled maintenance more convenient Short swing radius and independent boom swing allow operation in extremely confined spaces. This allows operation in locations that were previously inaccessible. The tier 4 final power plant, advanced SLSS hydraulic system, optimal power control and work mode selection improve speed and power while reducing fuel consumption


WHY SANY SWING BOOM EXCAVATORS?

SANY's swing boom excavators are the champions of confined spaces. Offered in a variety of machine configurations, these mini and small excavators fit various applications like landscaping, utilities, general construction, sewer and land management. All models feature standard auxiliary lines to run powered attachments. The SY35U through the SY80U boast spacious, comfortable, climate-controlled cabs to keep you cool in the summer and warm in the winter.

THE INVESTMENT THAT KEEPS ON RETURNING

Simply put, these machines are the achievers of any jobsite. They deliver all day long and they come loaded with standard features and the industry's strongest standard warranty. They're reliable and durable to take you the extra mile.

SAFETY

At SANY America, our equipment is designed with safety and service in mind. Before any machine hits the ground, it receives a pre-delivery inspection to ensure proper and safe operation. Standard safety features on all models include, but are not limited to, high visibility, intuitive control layouts, ergonomic joysticks and switches, adjustable and comfortable operator seats, camera systems and LED work light packages.

SERVICE

When we say that SANY machines are built to endure, we’re really talking about service. SANY equipment is intentionally designed to be easily and efficiently serviced, with features such as wide compartment doors and ground level access where possible to make maintenance more efficient. Because ease of service means back in service.

WE’VE GOT YOUR BACK

To provide peace of mind and ensure maximum uptime, SANY backs all its equipment with robust standard warranties. That’s our commitment to keeping your fleet running at peak performance. Our network of local dealers will partner with you for routine maintenance and be there for warranty repairs. You can trust SANY to keep you moving, year-round.


SPECIFICATIONS & COMPAREADD A MODEL TO COMPARE

MODEL SY60C

OVERALL DIMENSIONS

HIDE Boom Length 3000mm 9' 10 Stick (Arm) Length 1700mm 5' 7 Transport Length 6015mm 19' 9 Transport Width 2005mm 6' 7 Transport Height 2645mm 8' 8 Upper Structure Width 1860mm 6' 1 Cab Height Blade Height 340mm 13 Track Width (standard shoe) 400mm 16 Track Gauge 1600mm 5' 3 Ground Clearance (minimum) 330mm 13 Tail Swing Radius 1640mm 5' 5 Track Length on Ground 2045mm 6' 9 Track Length 2545mm 8' 4


TECHNICAL SPECIFICATIONS

HIDE Operating Weight 6100 kg 13,448 lb Ground Pressure 34.6 kPa 5.0 psi


Engine Yanmar 4TNV98C-WSY

Displacement 3.3 L 202.5 in3 Gross Power 42.4 kW 56.9 HP


Hydraulics Load Sensing with Pilot Control

Main Hydraulic Pump Axial Piston - Variable Displacement

Operating Flow (maximum) 142.7 L/min 37.7 gal/min Operating Pressure (maximum) 24.5 MPa 3553 psi Power Boost Pressure (maximum)


Travel Motor Axial Piston with Park Brake

Travel Pressure (maximum) 24.5 MPa 3553 psi Travel Speeds (maximum) 2.4 / 3.7 km/hr 1.5 / 2.3 mph Travel Effort (maximum) 47.2 kN 10,611 lbf Grade Capability 35°


Swing Motor Axial Piston with Swing Brake

Swing Pressure (maximum) 19.1 MPa 2770 psi Swing Speed (maximum) 9.6 rpm


Undercarriage (standard) Belted Rubber Track

Track Shoe Width (standard) 400 mm 16 Track Rollers (per side) 5 Carrier Rollers (per side) 1


WORKING RANGE

HIDE Boom Length 3000 mm 9' 10 Stick (Arm) Length 1700 mm 5' 7 Maximum Digging Height 5790 mm 19' 0 Maximum Dumping Height 4060 mm 13' 4 Maximum Digging Depth 3950 mm 13' 0 Maximum Vertical Wall Digging Depth 3180 mm10' 5 Maximum Reach at Ground Level 6320 mm20' 9 Minimum Swing Radius 2555 mm 8' 5
